Detector Data:
Type: Uncooled FPA
IR resolution: 384×288
Pixel pitch: 17μm
Spectral range: 7.5～14μm
NETD/Sensitivity: 60mK
Infrared Lens:
Lens: Standard 15mm lens, 6.2mm optional
FOV: Standard lens 24°× 18°, Optional lens 55°× 43°
Minimum imaging distance: 50cm
IFOV: 1.13mrad, 2.74mrad
Focus: Motor, support auto focus
Infrared Measurement:
Temp range: -20℃~+250℃（Scalable to 650℃）
Measurement accuracy: ±2℃/±2%(Reading range), take the maximum
Temp measurement mode: Spot measure, box measure, highest temp
Measurement correction: Auto/Manual
Palette: Black hot, white hot, rainbow, iron red
Electronic zoom: 2X, 4X
CCD Video Camera:
Lens focal length: F4.3-129.0mm(more focal lengths are optional)
Resolution: 1920×1080, max support 2048x1536
Signal system: PAL/NTSC
Sensor type: 1/2.8‘’ Progressive Scan CMOS
Zoom: 30X optics, 12X digital
Minimum illumination: 0.05Lux
SNR: >50dB
Electronic image stabilization: ON/Off
Pan & Tilt:
Horizontal range: 0°~360°
Horizontal speed: 0.1°~40°/s
Vertical range: -90°~90°
Vertical speed: 0.1°~30°/s
Presetting amount: 99
Repositioning accuracy: ±0.05°
Interface:
Video output: Thermal image analog video, network video
Control: RS485
Protocol: PECLO-D
Baud rate: 2400-4800-9600bps auto recognitionNetwork
Type: 100Mbps
Network protocol: IEEE802.3
Connector interface: RJ-45
Communication protocol: IEC60807-5-104、 IEC61850
Power System: Working voltage: DC: 24V Power consumption: Static 10W; dynamic23W Environment Parameters: Operating temperature range: -25℃～+50℃ Storage temperature range: -40℃～+70℃ Encapsulation: IP66 Vibration protection: Horizontal 9G, vertical15G
Physical data:
Size: 428mm×255mm×233mm
Weight: 10kg

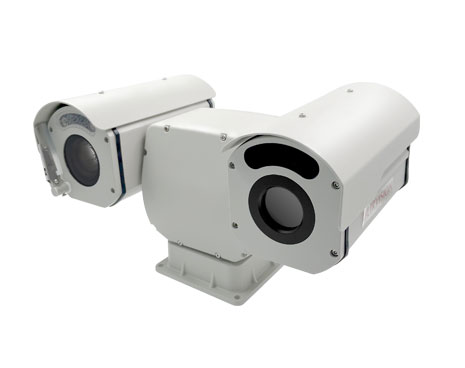

Packing Standard: Thermal Imaging Pan&Tilt, user manual, warranty card, packing box
