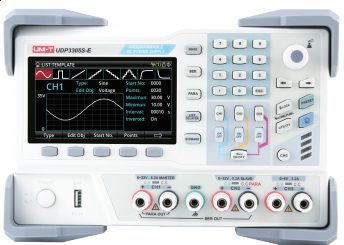

UNI-T UDP3305S Programmable Linear DC Power Supply (4-Channel, 30V, 5A)

Output voltage: 0~30V(CH1/CH2);0~6V(CH3)； 5V（CH4）

Output current: 0~5A(CH1/CH2);0~3A(CH3)； 2A（CH4）

Output power: 328W

Load regulation: CV: ≤0.01%+2mV

CC: ≤0.01%+250μA

Line regulation: CV: ≤0.01%+2mV

CC: ≤0.01%+250μA

Resolution: Voltage: 1mV

Current: 1mA

Programming accuracy: Voltage: ±（0.3%+10mV）

Current: ±(0.2%+5mA)

Readback accuracy: Voltage: ±（0.03%+10mV）

Current: ±（0.15%+5mA)

Ripple and noise: Voltage: ＜350μVrms/2mVpp(5Hz~1MHz)

Current: ≤2mArms

Temperature coefficient: Voltage:0.01%+5mV;

Current: 0.01%+2mA

Parallel load regulation: ≤0.01%+2mV

Parallel line regulation: ≤0.01%+2mV

Series load regulation: ≤300mV

Series line regulation: ≤0.01%+3mV

Standard interfaces: USB Host

(5V/2A, charging port only),

USB Device, LAN, RS-232,Digital I/O

Power: AC 100V/120V/220V/230V±10%, 50Hz/60Hz

Display: 4.3 inch LCD

Product net weight: 10.2kg

Product size (W×H×D): 355mmx240mmx 168mm
