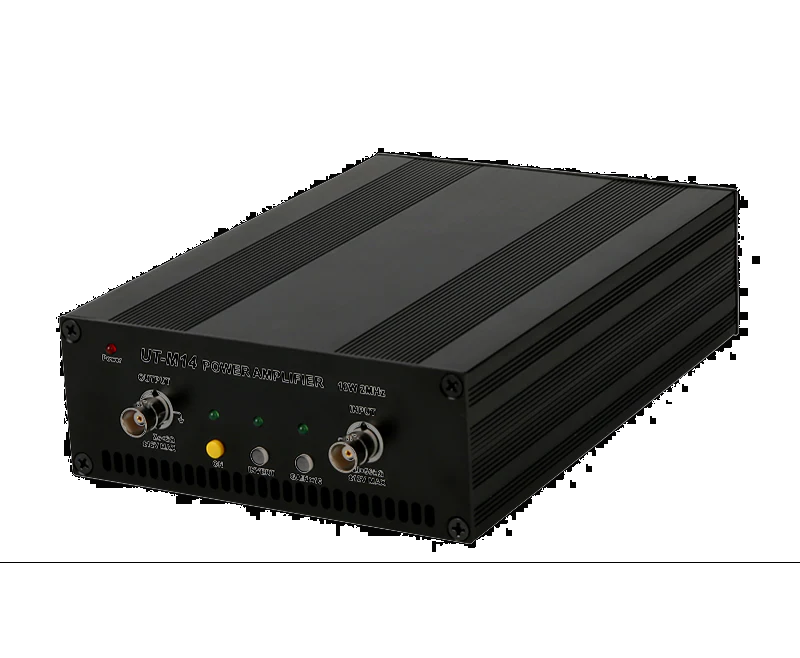

UNI-T UT-M14 Power Amplifier (50 kΩ)

Signal Input

Input Impedance: 50 kΩ

External Input: ±12 Vmax (Gain x1); ±1.25 Vmax (Gain x10)

Amplifier Index

Operating Mode: Constant voltage

Gain: Switching x1, x10 (DC gain error < ±5%±30 mV)

Polarity Switching: In-phase / Reverse phase

Sine Output Power RMS (RL=7.5 Ω): Maximum 10W (Typical value, input sinewave, 100 kHz, x10)

Output Voltage: 12. 5 Vpeak (Input sine wave, 100 kHz)

Output Current: 1.65 Vpeak (Input sine wave, 100 kHz)

Output Impedance: < 2 Ω

Full Power Bandwidth: DC ~ 2 MHz

Output Slew Rate: ≥ 160 V/µs (Typical value)

Overshoot: < 5%

Other

Power Supply: DC 9V/4000mA

Output Protection: Output current protection, interior temperature abnormal protection

Operating Temperature: 0 °C ~ +40 °C

Size (Width x Height x Depth): 145mm x 54mm x 215mm

Net Weight: 970g ± 20g
