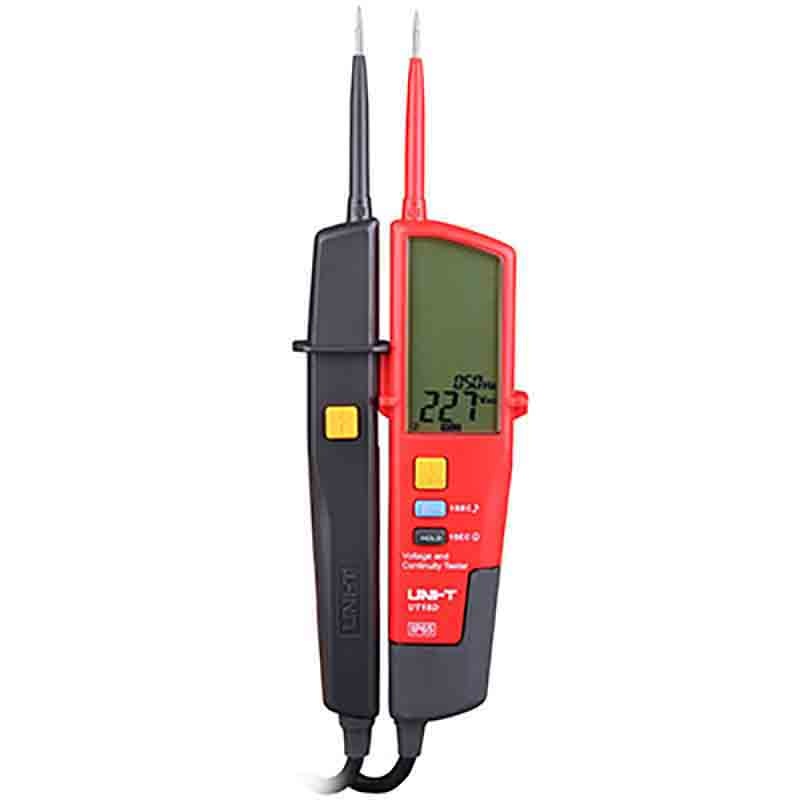

UNI-T UT18D Voltage and Continuity Tester (690V)

Voltage (V):

+ 6V: 5V±1V

+ 12V: 8V±1V

+ 24V: 18V±2V

+ 50V: 38V±4V

+ 120V: 94V±8V

+ 230V: 180V±14V

+ 400V: 325V±15V

+ 690V: 562V±24V

Phase rotation test:

+ AC 57~400 V (3 phase)

+ Frequency: 50Hz~400Hz

Single lead (L2) voltage detection:

+ Operating voltage: 100V~690V

+ Frequency: 50Hz~400Hz

Continuity test:

+ Resistance: 0Ω~100kΩ (+50% accuracy)

+ Beeper and LED light indication

RCD test: Operating voltage: 230V (50Hz~400Hz)

Polarity detection: Positive & Negative

Self-inspection: All LED or LCD

Voltage indication: LCD

Exceed voltageVoltage range: 713V~788V

Auto standby: Standby current＜10μA

Slient mode: All range

Work light: Yes

Low battery indication: Around 2.5V

LCD backlight: Yes

LCD display (voltage): 6V~690V ±(1.5%+5)

LCD display (Frequency): 40Hz~400Hz: ±(3%+5)

IP65: Yes

Power: 1.5V battery (R03)×2

Display: 73.5mm x 35.5mm

Product color: Red and grey

Product net weight: 280g

Product size (W x H x D): 272mm x 85mm x 31mm

Standard accessories: Batteries
