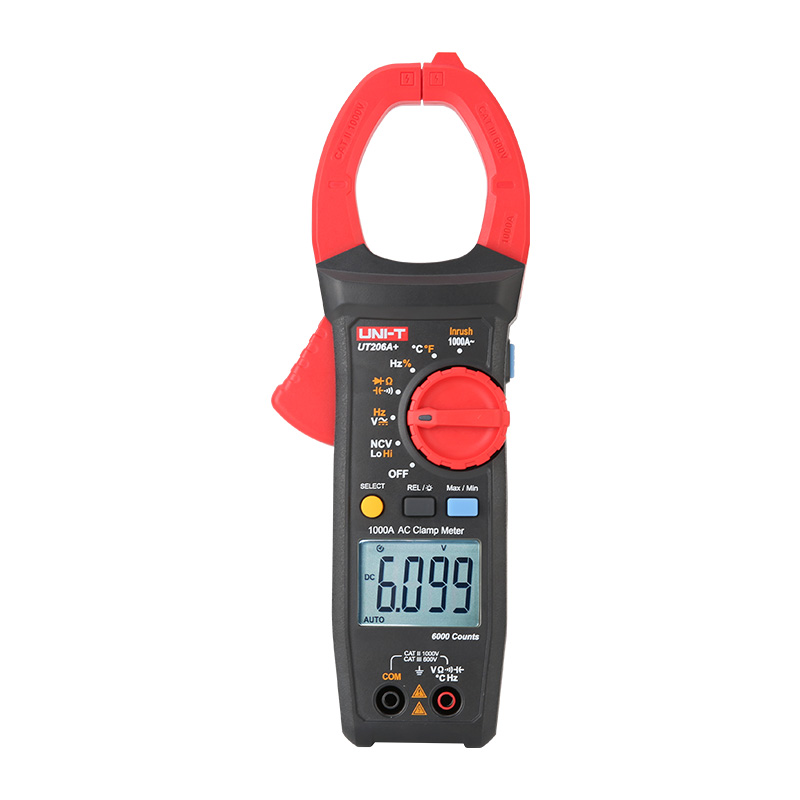

UNI-T UT206A+ Digital Clamp Meter (1000A AC)

Specificatons:

- AC current (A): 1000A ; ±(1.5%+5)

- Inrush current (A): 600A ; ±(5%+10)

- AC voltage (V): 1000V ; ±(1.0%+2)

- ACV frequency (Hz): 10Hz~10kHz ; ±(1.0%+5)

- DC voltage (V): 1000V ; ±(0.7%+3)

- Resistance (Ω): 40MΩ

60MΩ ; ±(0.8%+2)

- Capacitance (F): 40mF

60mF ; ±(4%+5)

- Frequency (Hz): ±(0.1%+4) ; ±(0.1%+4)

- Temperature (°C/°F): ±4°C/±5°F

Features:

- Display count: 6099

- Jaw opening: 45mm

- Auto range: √

- Duty cycle: √

- NCV: √

- Diode test: √

- Continuity: √

- Low battery indication: ≤2.5V

- Data hold: √

- Auto power off: 15 minutes

- Max/Min: √

- Flashlight: √

- Backlight: √

- Safety rating: CAT II 1000V/CAT III 600V
