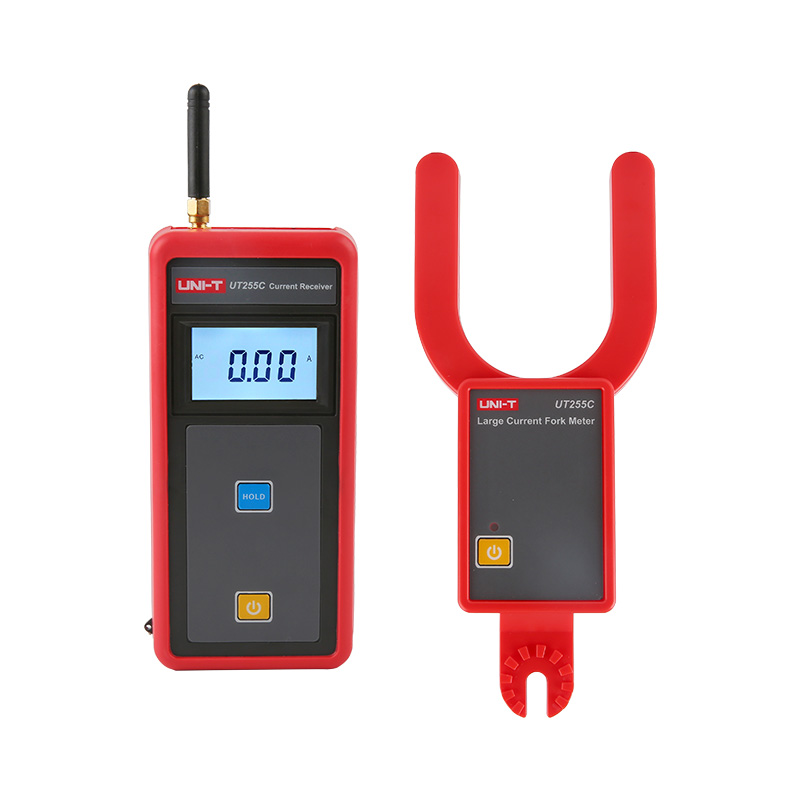

UNI-T UT255C Wireless Large Current Fork Meter (0.00A~9999A, 60KV)

Function:

1, Measure high-voltage AC current;

2, Measure low-voltage AC current;

3, On-line AC current monitoring.

Current measurement range: 0.00A~9999A (50/60Hz, automatic); 0.01A (resolution); ±2%±5dgt

Conductor voltage range: 60KV (Object: bare conductor; insulation rod extended)

Voltage class of insulation rod: 110KV

Power supply: DC6V alkaline dry battery (1.5V AAA × 4)

Testing mode: Non-contact U-shaped CT

Transfer mode: 433MHz wireless transfer; Transfer distance: 100m.

Sampling rate: 2 times/s

Screen: 4-digit LCD display (with backlight); 47mm×28.5mm

Auto range: √

Data storage: 99 set

Overload indication: The symbol “OL A” appears.

No signal indication: The symbol “no- -” is displayed dynamically

Auto power off: Around 15 minutes

Low battery indication: YES

Insulation rod voltage level: 110KV

Insulation rod size:

1, Φ45mm，

2, Length: 850 mm (retracted); 3600 mm (extended); Product dimension: 1, Meter：107×252×31mm (W*H*L)；

2, Receiver：78×165×42mm

3, CT size: φ68mm

Product weight: Detector: 235g (including battery);

Receiver: 280g (including battery);

Total weight: 2300g (including hot stick and battery)

Working environment: -10°C~40°C; ≤80%Rh

Interference: Avoid interference from the co-channel signal of 315MHz and 433MHz

Dielectric strength: AC 220kV/rms (between both ends of the fully-extended hot stick)

Structure: Anti-dripping type Ⅱ

Accessories: 1pcs Meter；1pcs receiver；1pcs antenna；1pcs insulation rod；1.5V AAA × 4pcs；1pcs toolbox
