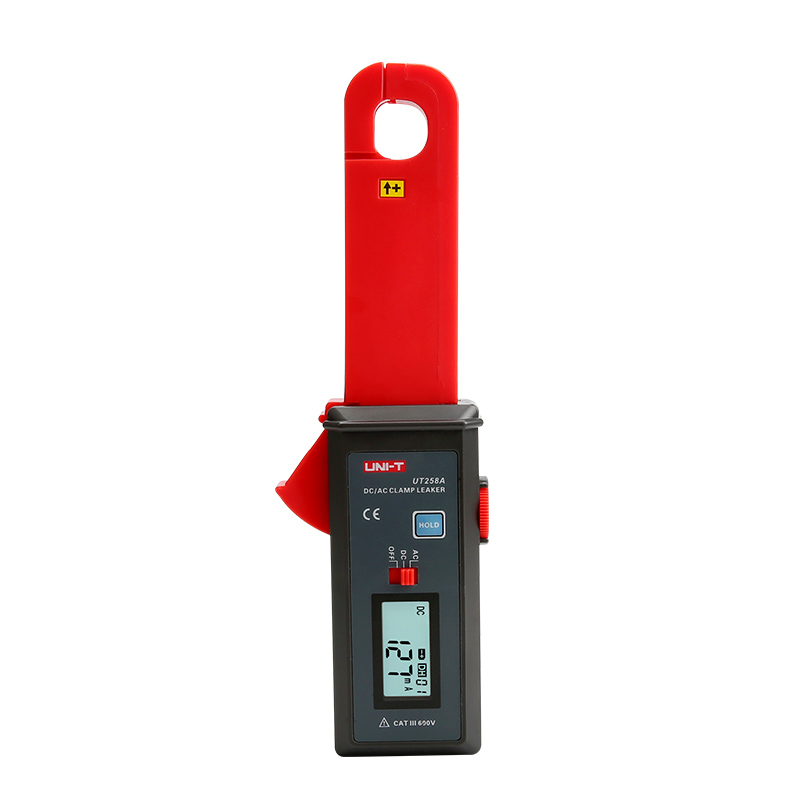

UNI-T UT258A AC/DC Leakage Clamp Meter (AC/DC 60A)

Current (A): 0mA~60.0A AC/DC ±(2%+5)

Resolution: 1mA AC/DC　

Frequency Response: AC 45HZ~200HZ　

Display Mode: 4-bit LCD display

Jaw Size: φ7mm (max wires O.D.)

Auto Range: √

RS-232 Data Transmission: √

Data Storage: 99 groups

Zero Adjustment: Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested.

Data Hold: √

Line Voltage: not beyond 600V

Auto Power Off: 5 min

Low Battery Indication: Indicates low battery when the voltage is 7.2

Sampling Rate: About 2 sec per time

Working Current: 10mA

Power Supply: Zinc-manganese battery 6F22 9V

Product Color: Red and grey

Product Weight: 180g (with batteries)

Product Size: 168mm×65mm×34mm

Standard Accessories: Batteries, monitoring software, RS232 cable
