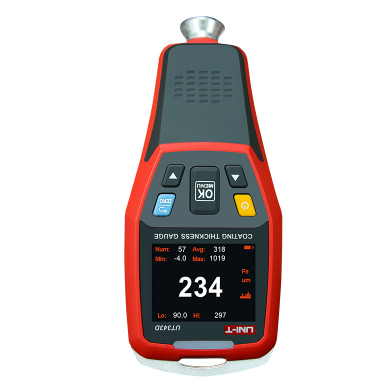

UNI-T UT343D Coating Thickness Gauge (0~1250μm, ±(3%H+1)μm)

Measuring range: 0~1250um

Accuracy: ±(3%H+1)um

Resolution: 0.1um (0~99.9um); 1um (100~1250um)

Measurement method: Single/Continuous

Measurement mode: Max/Min/Avg

Metal type: Ferrous/ non-ferrous

Standard accessories: Micro USB interface cable, standard piece, batteries, cloth bag

Features

Display type:2.0-inches TFT LCD (320 x 240 pixels)

LCD brightness control:√

Auto rotatable screen:√

Unit conversion:√

Audio alarm:√

LED alarm:√

PC analysis software:√

USB communication:√

Quick test mode:√

Data storage :500 groups

Auto power off:√

Low battery indication:√

General Characterisitics

Power:3V battery (R03) x 2

Display:48mm x 36mm

Product color:Red and grey

Product net weight:175g

Product size:153.5mm x 64.5mm x 41mm

Standard accessories:Micro USB interface cable, standard piece, batteries, cloth bag

Standard individual packing:Gift box, English manual

Standard quantity per carton:20pcs

Standard carton measurement:355mm x 320mm x 195mm

Standard carton gross weight:7.5kg
