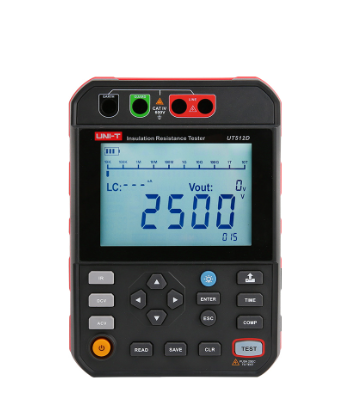

UNI-T UT512D Insulation Resistance Testers (2500V, 1.00TΩ)

Rated voltage

250V: <0.25MΩ, 0.25MΩ～4.99GΩ, 5.00GΩ～24.9GΩ, 25.0GΩ～100GΩ

500V: <0.50MΩ, 0.50MΩ～9.99GΩ, 10.0GΩ～49.9GΩ, 50.0GΩ～200GΩ

1000V: <1.00MΩ, 1.00MΩ～19.9GΩ, 20.0GΩ～99.9GΩ, 100GΩ～400GΩ

2500V: <2.50MΩ, 2.50MΩ～49.9GΩ, 50.0GΩ～249GΩ, 250GΩ～1.00TΩ

Accuracy: ±(5%+5), ±(20%+10)

DC voltage: 30～1000VDC

AC voltage: 30～750VAC, 50Hz/60Hz

Current: 0.01nA～3.5mA

Short-circuit current: about 3.5mA

Power supply: 8 * LR14 Alkaline battery

Weight:About 1800g (including battery)

Accessories: User manual 1 pc; Test lead (red, black, green: 1 for each) 3 pcs; USB cable 1 pc; 8 PCS LR14 alkaline batteries (UT512D); Carrying strap 1pc

Datasheet
