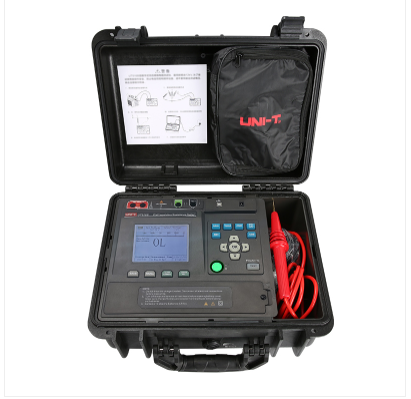

UNI-T UT516B Insulation Resistance Tester (12KV, 10TΩ)

Insulation Resistance Measurement

500V

0.50MΩ~4.99G±(5%+5)

5.00G-49.9GΩ±(10%+10)

50.0GΩ-500GΩfor reference only

1000V

1.00MΩ-9.99GΩ±(5%+5)

10.0G-99.9GΩ±(15%+10)

100GΩ-1000GΩfor reference only

2500V

2.50MΩ-24.9GΩ±(5%+5)

25.0G-249GΩ±(15%+10)

250GΩ-2.5TΩfor reference only

5000V

5.00MΩ-49.9GΩ±(5%+5)

50G-499GΩ±(15%+20)

500GΩ-5.0TΩfor reference only

10000V

10.0MΩ-99.9GΩ±(10%+10)

100G-999GΩ±(20%+20)

1000GΩ-10TΩfor reference only

12000V

12.0MΩ-99.9GΩ±(10%+10)

100G-999GΩ±(20%+20)

1000GΩ-10TΩfor reference only

Output voltage

500V0~+10%

1000V0~+10%

2500V0~+10%

5000V0~+10%

10000V-5~+10%

12000V-5~+10%

Load current

500V (R=500KΩ) 1mA 0%---+20%

1000V (R=1MΩ) 1mA 0%---+20%

2500V (R=2.5MΩ) 1mA 0%---+20%

5000V (R=5MΩ) 1mA 0%---+20%

10000V (R=10MΩ) 0.15~1.2mA 0%---+20%

12000V (R=12MΩ) 0.15~1.2mA0%---+20%

DC voltage measurement: 30V~1000V/±(3%+5)

AC voltage measurement: 30V~750V (50~60Hz) /±(3%+5)

Features

PC software for data analysis:　√

Backlight Function:　√

Date storage999 sets of date:√

Dielectric Absorption Ratio (DAR) :0.00~999√

Polarization Index (PI)0.00~999:√

General Characterisitics:

Power:1.5V alkaline batteries (LR14) X 10, power adapter

Product color:Red and grey

Product net weight:6.6kg

Product size:410*342*204mm

Standard accessories: User manual, Test leads (red/black/green 1 each), USB cable, power adaptor, 1.5V alkaline batteries
