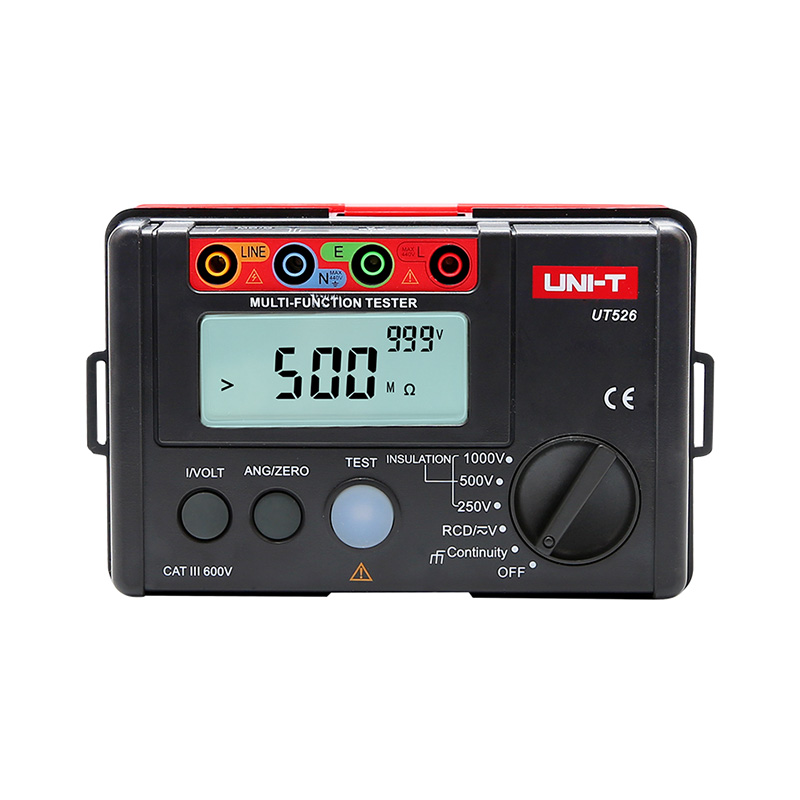

UNI-T UT526 Multifunction Electrical Meter

Insulation resistance (Ω):

Test voltages:

250V/500V/1000V: ±10%

250V: 0.05MΩ~200MΩ: ±(5%+5)

500V: 0.05MΩ~300MΩ: ±(5%+5)

1000V: 0.05MΩ~500MΩ: ±(5%+5)

Load current:

250V (R=250kΩ) 1mA: ±10%

500V (R=500kΩ) 1mA: ±10%

1000V (R=1MΩ) 1mA: ±10%

Short circuit current: <2mA: √

RCD:

Operating voltage (Freq.): 220V (45Hz~65Hz): ±10%

Test current: 10mA/30mA/100mA/300mA: 0~20%

Trip time:

0ms~2000ms, 1Δn general (10mA): ±(5%+2)

0ms~500ms, 1Δn general: ±(5%+2)

0ms~300ms, 1Δn general (100mA, 300mA): ±(5%+2)

Low resistance continuity: :

Range: 0Ω~2000Ω: ±(2%+5)

Test voltage: Around 5V: √

Test current: >200mA (R<2Ω): √

Voltage measurement (V): :

DC voltage: 0~440V: ±(5%+2)

AC voltage: 0~440V: ±(5%+2)

Frequency (For reference only): : √

Features:

Display count: 10000

Manual range: √

Phase switch (RCD) 0°and 180°: √

Low battery indication: √

Auto AC/DC voltage identification: √

Red warning lights: √

General Characteristics:

Power: 1.5V battery (LR6) x 6

Display: 71mm x 34mm

Product color: Red and grey

Product net weight: 380g

Product size: 160mm x 100mm x 71mm

Standard accessories: Batteries, carrying bag, gallus, test leads, alligator clips, test line

Standard individual packing: Gift box, English manual

Standard carton measurement: 445mm x 440mm x 180mm (0.063 CBM per standard carton)

Standard carton gross weight: 12.8kg
