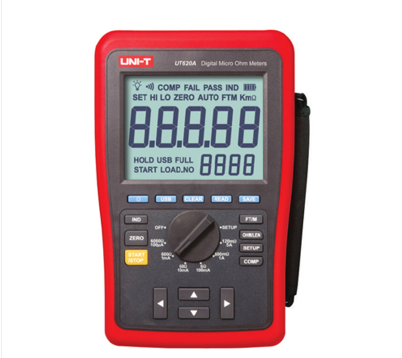

UNI-T UT620A Digital Micro Ohm Meter (120mΩ~6kΩ, 10uΩ)

Resolution: 10uΩ

Resistance (Ω):

120mΩ/5A / ±(0.25%+25)

600mΩ/1A / ±(0.25%+25)

6Ω/100mA / ±(0.25%+25)

60Ω/10mA / ±(0.25%+25)

600Ω/1mA / ±(0.25%+25)

6kΩ/100uA / ±(0.75%+30)

Features

Display count:　60000

Four-wire measurement:　√

Wire length measurement:　√

High/low limit alarm:　√

Data storage　:1000

USB data transmission:　√

Manual range:　√

Backlight :　√

Relative value　:√

Low battery indication:　√

General Characterisitics

Power:Li-ion battery 7.4V 4000mAh, rechargeable

Display:116mm x 87.5mm

Product color:Red and grey

Product net weight:1.5kg

Product size:268mm x 168mm x 60mm

Standard accessories:Test leads with Kelvin clips (red & black), power cord, power adaptor, USB interface cable, PC software CD

Standard individual packing:Gift box, carrying bag, English manual

Optional accessories:Four-wire test probes (red & black) x 1
