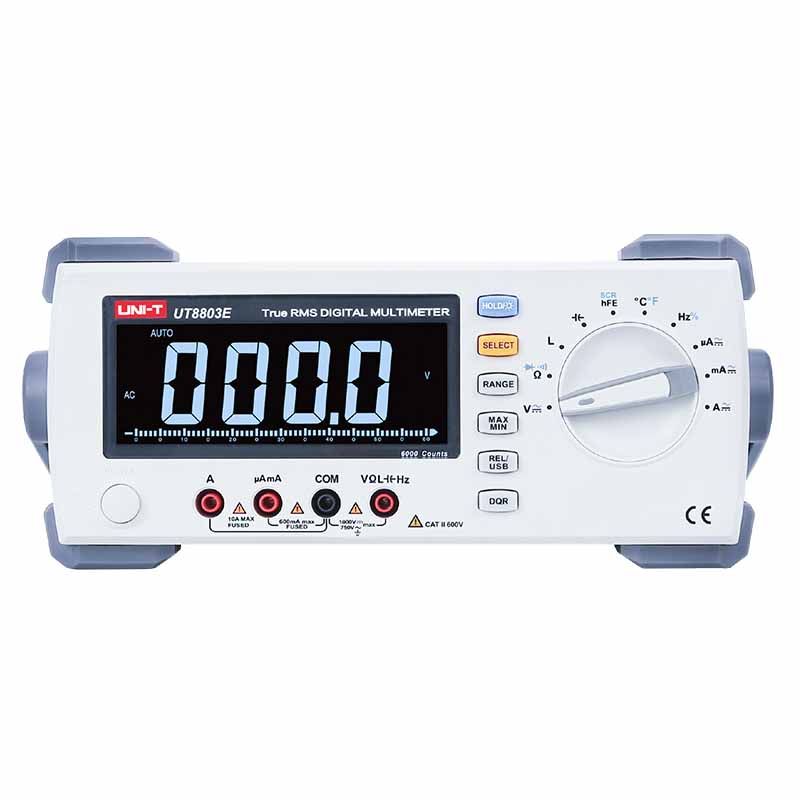

UNI-T UT8803E Benchtop Digital Multimeter (1000V, 10A, True RMS)

DC voltage (V) 1000V

AC voltage (V) 750V

DC current (A)10A

AC current (A)

Resistance (Ω) 60MΩ

Capacitance (F) 6mF

Frequency (Hz) 600Hz~20MHz

Duty cycle (%) 5%~95%

Inductance (H) 100H

Display count: 6000

Auto range: Yes

Bandwidth: 100kHz

True RMS: Yes

DC voltage: 1000V

AC voltage: 750V

DC current: 10A

AC current: 10A

Resistance: 60MΩ

Capacitance: 6mF

Conductance: No

Frequency: 600Hz~20MHz

Duty cycle: Yes

Temperature: 1000°C

Diode test: Yes

Continuity buzzer: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

SCR test: Yes

AC+DC: Yes

Data hold: Yes

LCD backlight: Yes

Input impedance: ≥10MΩ
