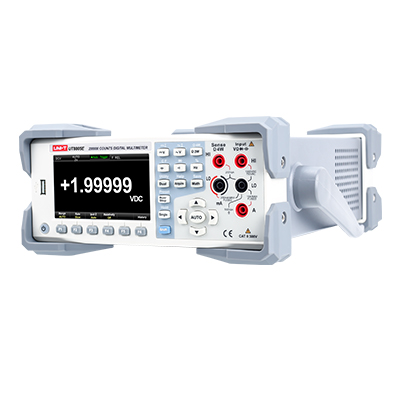

UNI-T UT8805E Benchtop Digital Multimeter (±0.008%, 1000V, 10A, True RMS)

DC voltage (V) 20mV/2V/20V/200V/1000V ±(0.008%+0.003%)

AC voltage (V) 200mV/2V/20V/200V/750V ±(0.19%+0.05%)

DC current (A) 200μA/2mA/20mA/200mA/2A/10A ±(0.050%+0.005%)

AC current (A) 2mA/20mA/200mA/2A/10A ±(0.30%+0.1%)

Resistance (Ω) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ ±(0.012%+0.003%)

Capacitance (F) 2nF/20nF/200nF/2μF/20μF/200μF/2mF ±(1%+0.5%)

Frequency (Hz) 20Hz~1MHz ±(0.01%+0.003%)

Display count: 200000

Auto range: Yes

Bandwidth: 100kHz

True RMS: Yes

DC voltage: 1000V

AC voltage: 1000V

DC current: 10A

AC current: 10A

Resistance: 100MΩ

Capacitance: 2mF

Conductance: No

Frequency: 20Hz~1MHz

Duty cycle: No

Temperature: 1760°C

Diode test: Yes

Continuity buzzer: Yes

MAX/MIN: Yes

Relative mode: Yes

USB: Yes

SCR test: No

AC+DC: No

Data hold: Yes

LCD backlight: Yes

Input impedance: ≥10MΩ

Datasheet
