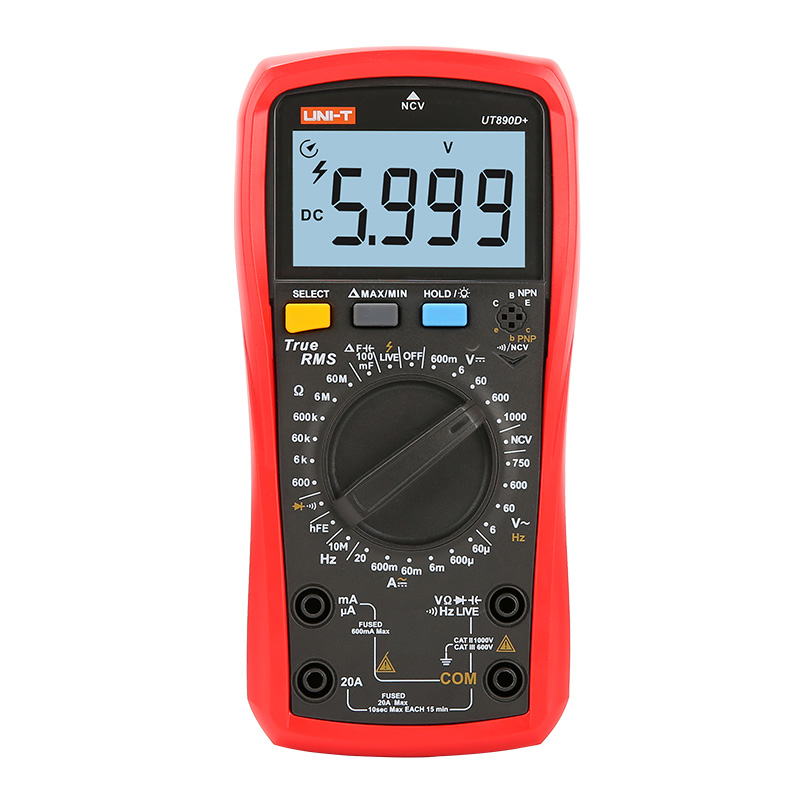

UNI-T UT890D+ Digital Multimeter (1000V,20A,True RMS, ±0.5%)

DC Voltage: 600mV/6V/60V/600V/1000V ±(0.5%+2)

AC Voltage: 6V/60V/600V/750V ±(0.8%+3)

ACV Frequency: 10Hz~10kHz ±（0.1%+5)

DC Current: 60uA//600uA/6mA/60mA/600mA/20A ±(0.8%+8)

AC Current: 60uA/600uA/6mA/60mA/600mA/20A ±(1%+12)

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)

Capacitor: 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF ±(3%+10)

Frequency: 9.999Hz~9.999MHz ±(1.0%+5)

Power: 1.5V x 2

Display: 61mm x 36mm

Product color: Red and grey

Product net weight: 346g

Product size: 183mm x 88mm x 56mm

Features:

Display count: 6000

Auto range: No

True RMS: Yes

Diode test: Yes

Transistor test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: Yes

Relative mode: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: Yes

Input impedance: ≈10MΩ

Category ratings: CAT II 1000V, CAT III 600V

Drop test: 1m

Fuse alarm: Yes
