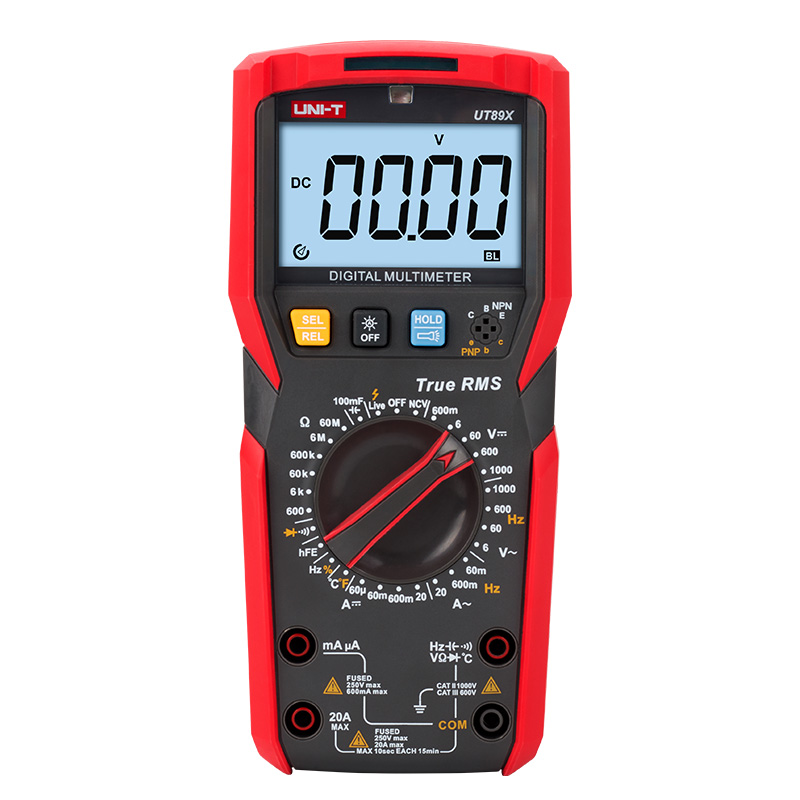

UNI-T UT89X Digital Multimeter (1000V,20A,True RMS, ±0.5%)

DC voltage (V): 600mV/6V/60V/600V/1000V±(0.5%+2)

AC voltage (V): 6V/60V/600V/1000 ±(0.8%+5)

DC current (A): 60μA/60mA/600mA/20A ±(0.8%+8)

AC current (A): 60mA/600mA/20A±(1%+12)

Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+3)

Capacitance (F): 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF ±(2.5%+20)

Frequency (Hz): 9.999Hz/9.999MHz ±(0.1%+4)

Duty cycle: 0.1%~99.9% ±(2%+5)

Temperature (°C): -40°C~1000°C ±(2%+4)

Temperature (°F): -40°F~1832°F ±(2%+8)

Power: 1.5V battery (R03) x 4

Display: 61mm x 36mm

Product color: Red and grey

Product net weight: 345g

Product size: 189mm x 89mm x 53mm

Standard accessories: Batteries, test leads, k-type temperature probe

Features:

Display count: 6000

Auto range: No

True RMS: Yes

Diode test: Yes

Transistor test: Yes

Continuity buzzer: Yes

NCV: Yes

MAX/MIN: No

Relative mode: Yes

Data hold: Yes

Auto power off: Yes

LCD backlight: Yes

Input alarm: Yes

Input impedance: ≥10MΩ

Category ratings: CAT III 1000V CAT IV 600V

Drop test: 1m

Audible and visual alarm,LED/Live test, flashlight: Yes
