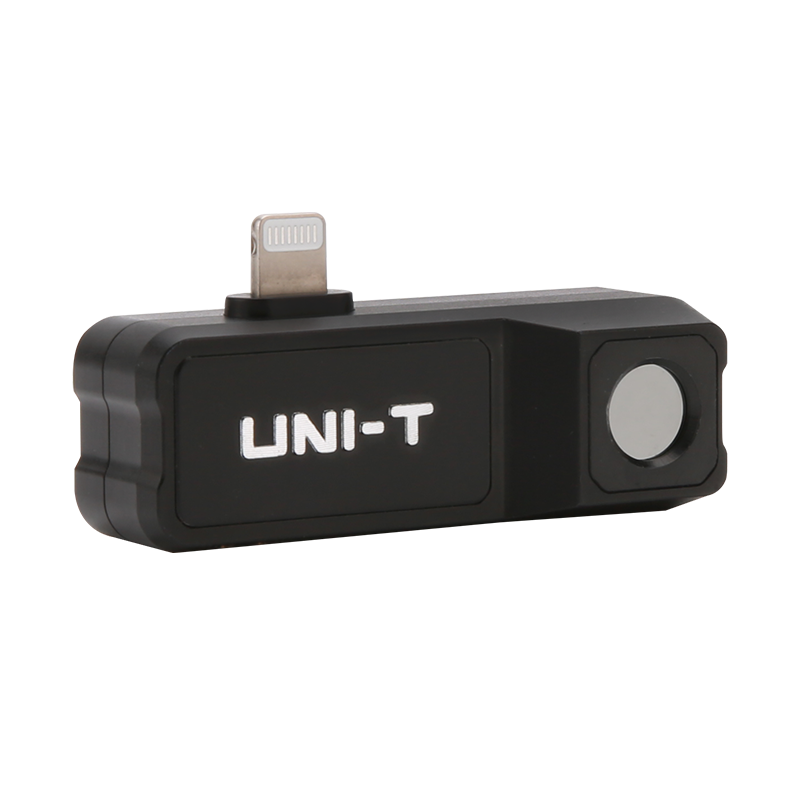

UNI-T UTi120MS Smartphone Thermal Imager

Technical Data

IR resolution (Pixels): 120×90

Field of view(FOV): 50°×38°

Thermal sensitivity(NETD): ≤60mK @25℃

Spatial resolution(IFOV): 7.3mrad

Frame rate: ≤25Hz

Focus: Focus free

Lens focal length: 2.28mm

Temperature measurement range: -20℃ ~ 400℃

Accuracy: ±2℃ or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)

Image modes: Thermal,Fusion,PIP

On screen analyzer: 6 Points/6 Lines/6 Rectangles/6 Circles

Hi/Lo temperature alarm: √

Video recording: √

General Characteristics

USB: Lightning

Drop proof: 1m

Image/Video storage format: JPEG, MP4

Certificates: CE,UKCA,FCC,RoHS,MFi

Languages: ZH, EN

Product net weight: 25g

Product size: 53mm×18.2mm×18.5mm

Packing Details

Standard accessories: English manual, Documents download operation guide card

Standard individual packing: Gift box

Standard Qty per carton: 20pcs

Standard carton size: 290mm×265mm×325mm

Standard carton G.W.: 4.8kg
