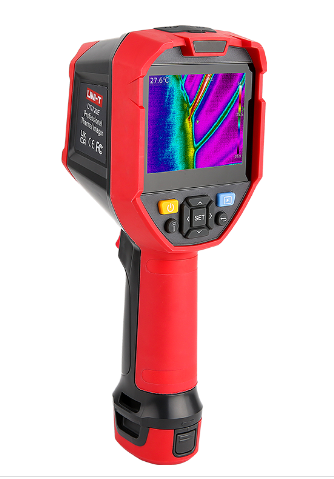

UNI-T UTi720E Enhanced Thermal Camera (256 × 192 pixel, -20 ℃ ~ 550 ℃)

Technical Data

IR resolution (Pixels): 256×192

Display: 3.5‘’IPS (640*480)

Field of view(FOV): 56°×42.2°

Thermal sensitivity(NETD): ≤50mK @25℃

Spatial resolution(IFOV): 3.8mrad

Frame rate: ≤25Hz

Focus: Focus Free

Temperature measurement range: -20℃~550℃

Accuracy:±2℃ or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)

Image modes: Thermal,Visual image,Fusion,PIP

On screen analyzer: Point 5/Line 1/Rectangle 3/Circle 3

Digital camera resolution: 2MP

Digital zoom: 2x, 4x

Hi/Lo temperature alarm: Icon,LED flashlight

Isotherm: 6 (Auto/Ratio/Below/Above/Section/Manual)

PC software analysis: Yes

Wi-Fi: Yes

General Characteristics

Battery: Detachable Li-ion battery pack(3.7V 5200mAh)

Battery operation time: ≥ 4 hours (without Wi-Fi)

USB: Type-C

IP rating:IP54

Drop proof: 2m

Storage: 16GB Micro SD card

Image/Video storage format: JPEG

Certificates: CE,UKCA,FCC,RoHS

Product net weight:630g

Product size: 260mm×97mm×99mm

Packing Details

Standard accessories: Micro SD card,Type-C USB cable, English manual, Li-ion battery pack

Standard individual packing: Toolbox,Gift box

Standard Qty per carton: 1

Standard carton size:400mm×185mm×345mm

Standard carton G.W.: 3.6kg

Specification
