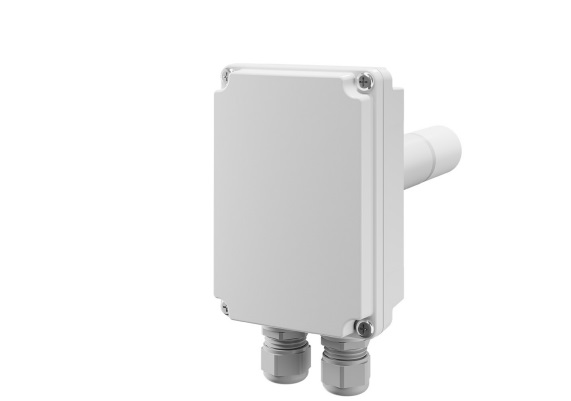

VAISALA GMD110 Duct Carbon Dioxide Transmitter (−20 … +60 °C (−4 … +140 °F))

- Sensor: CARBOCAP

- Measurement range: 0 … 10 000 ppm CO2

- Operating temperature: −20 … +60 °C (−4 … +140 °F)

- Humidity: 0 … 95 %RH, non-condensing

- Condensation prevention: Sensor head heating when power on

- IP rating: IP65

- Output paramete:r Carbon dioxide (ppm)

- Output modes:

0/4 … 20 mA, scalable, max. load 500 Ω

0 … 5/10 V, scalable, min. load 10 kΩ

RS-485 with Modbus RTU

- Power consumption: 0.5 W typical, 1.1 W max.

- Probe diameter: 25 mm (0.98 in)

- Probe length: 126 mm (4.96 in)

- Weight: 215 g (0.47 lb)

- Screw terminal wire size: 0.5 … 2.5 mm2 (AWG 24 … 14)

- Housing color: White (RAL9003)

- Mounting methods:

Screws or optional mounting flange

243261SP

Datasheet
