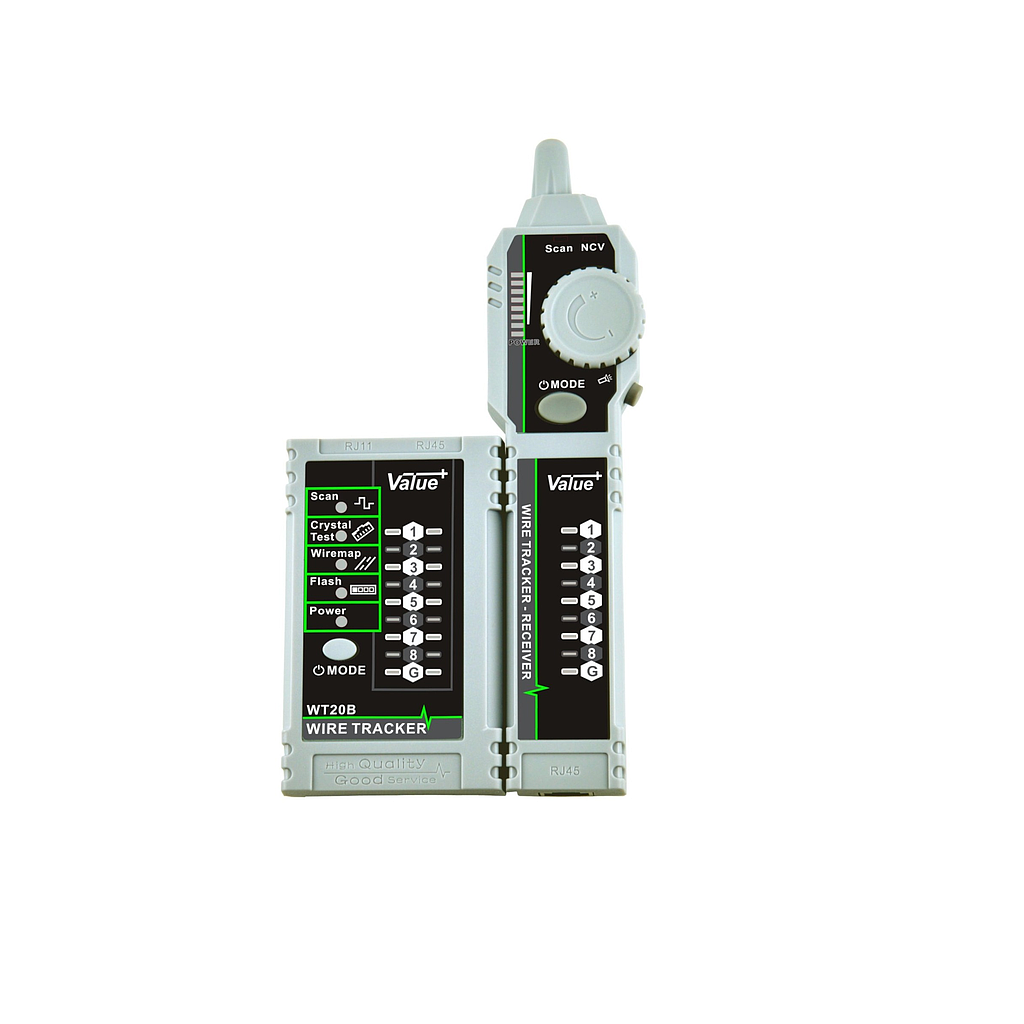

Value+ WT20B Digital Wire Tracker

Digitalized Cable Tracing: Yes

Tracing cables connected to ethernet hub with POE support: Yes

Signal Level indication: Yes

Port Blink Test:

 100W: Yes

 1000W: -

Display POE Power Pinouts: Yes

60V POE Hipot Protection: Yes

Crimping Crystal Test: Yes

Cable Testing:

 Shorts: Yes

 Open: Yes

 Split Pair: Yes

NCV: Yes

Tracing signal transmission distance : 3km

Output signal level : ~15Vp-p

Vibration inducation: -

Flashlight: Yes

Signal Level Indication: Yes

Tracing Sensitivity Adjustable: Yes

NCV Sensitivity Adjustable: Yes

Low Battery Indication: Yes

Auto Power Off: Yes

 Input Jack Indicators: Yes

Power by:

Transmitter 9V (6F22): Yes

Transmitter 3.7V, 800mAH Lithium Ion Battery: -

Receiver : 3.7V, 800mAH Lithium Ion Battery: Yes
