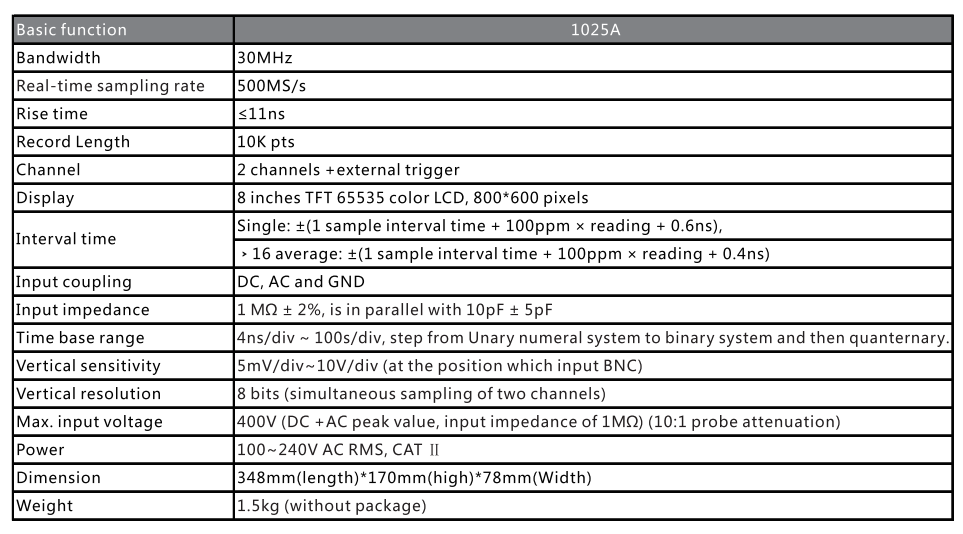

Bandwidth: 30MHz
Real-time sampling rate: 500Ms/s
Rise time: ≤ 11ns
Record Length: 10K
Channel: 2 channels + external trigger
Display: 8 inches TFT 65535 color LCD, 800*600 pixels
Interval time:
Single: ±(1 sample interval time + 100ppm x reading + 0.6ns),
16 average: ±(1 sample interval time + 100ppm x reading + 0.4ns)
Input coupling: DC, AC and GND
Input impedance: 1 M2 ± 2%, is in parallel with 10pF ± 5pF
Time base range: 4ns/div ~ 100s/div, step from Unary numeral system to binary system and then quanternary.
Vertical sensitivity: 5mV/div~10V/div (at the position which input BNC)
Vertical resolution: 8 bits (simultaneous sampling of two channels)
Max. input voltage: 400V (DC +AC peak value, input impedance of 1M)(10:1 probe attenuation)
Power: 100~240V AC RMS, CAT II
Dimension: 348mm(length)*170mm(high)*78mm(Width)
Weight: 1.5kg
Datasheet
