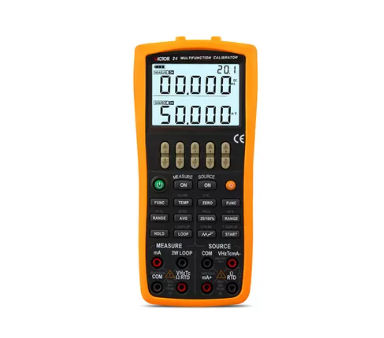

VICTOR 24 Process Calibrators (-10 ～ 110mVDC, -0.1 ～ 11VDC, 0 ～ 22mADC)

SOURCE

DC millivolt

Range:-10 ～ 110mV

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:1uV

DC voltage

Range:-1 ～ 11V

Accuracy= ±(% of the set value+% of range):0.02%+0.01%

Resolution:10uV/0.1mV

DC current

Range0 ～ 22mA

Accuracy=±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

Sink current

Range:0 ～ 22mA

Accuracy±(% of the set value+% of range):0.02%+0.02%

Resolution:1uA

External power supply:5 ～ 28V

Resistance

Range:0 ～ 40KΩ

Accuracy= ±(% of the set value+% of range):0.02%+0.02%

Resolution:0.01Ω/0.1Ω/1Ω

Frequency

Range:1Hz ～100KHz

Accuracy:±2words

Resolution:0.01Hz/1Hz/0.1KHz/2KHz

Standard Accessories

Two pair of Industrial testing Lead (H000002)

A pair of Testing Probe (H000000)

A pair of Alligator clip (H010000)

A quick reference guide

A User's Manual

One Fuse 50mA/250V

One Fuse 100mA/250V
