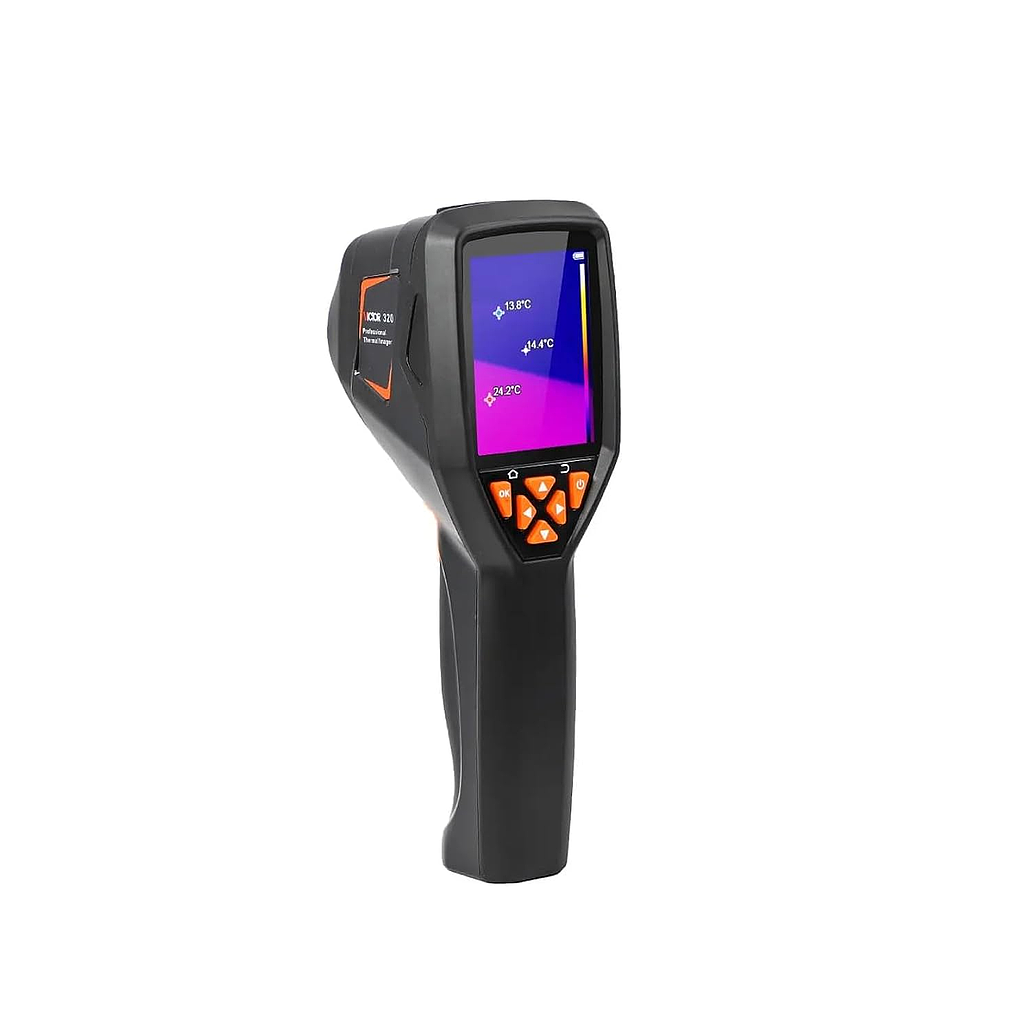

VICTOR 320B Thermal Imaging Camera (55.6°[HFOV], 256x192)

IR thermal imaging

Resolution: 256x192

Working band: 8~14um

Frame rate: 25Hz

NETD: 70mK @ 25℃

Field of view: 55.6°[HFOV]

Lens: 2.3mm F1.1

Scope: -20~400°C

Precision: ±3℃ or ±3% of reading

Emissivity: 0.01 to 1.00 adjustable

Support point: Full screen maximum/minimum/center/area temperature measurement

Swatches: lron Red,White Hot, Black Hot,Rainbow,Red Hot,High Contrast,Green Hot,Lava

Visible light

Resolution: 720P

Field of view: 55°X83°

lmage display: lmage mode: Edge blending, overlay blending, picture-in-picture, single lR, single visible light

Storage

Capacity: 8G built-in memory, can store more than 20,000 pictures

lmage storage format: JPG

Video format: MP4

Basic parameters

Language: Chinese(Simplified),Chinese(Traditional),English, French,German, Spanish, Dutch, Japanese, Korean,Arabic

Power supply: Built-in 2600mAh large capacity rechargeable battery

Display size: 2.8 inches

Body color: Black

Body weight: About 310g

Dimensions: 70*80*200mm

Standard accessories: USB Type-C data cable, GB charging head, lanyard, manual
