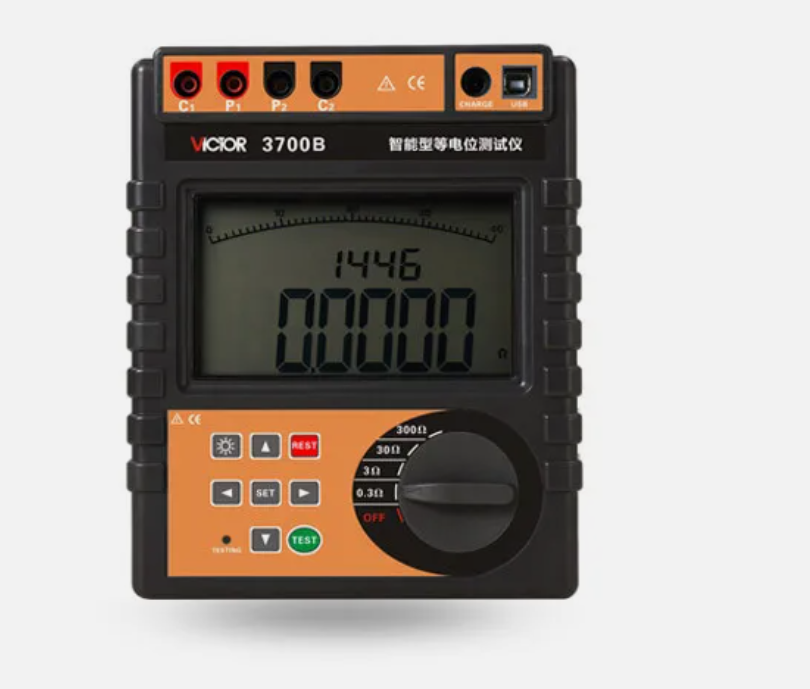

Function: Test of equipotential bonding resistance between functional metal components, low resistance test, DC resistance test, resistance test of connecting conductor in ground network ground pole, contact resistance, riveting resistance test, wire length test, etc.
Working Current: ≤2.1A
Test Method: Four wires precision method, 2 Road A/D simultaneous detection
Measurement Range: 0.01Ω～100kΩ (A type)
Wire Length Test: L:≤999.999m
Standard Wire Length: Length setting range: 1m ~ 100m
Measurement time: 3 seconds / times
Features
Data Storage: 1000 groups
Alarm Setting: 1-30ohm
Data Hold √
Backlight √
Display: LCD Display
Line Voltage: Should avoid line live measurement
Overflow Indication: "OL" symbol display
Low voltage indication: √
Working Condition: -10℃-40℃, below 80%rh
Storage Condition: -10℃-60℃, below 70%rh
Interface: USB
Withstanding Voltage: AC 3700V/rms (Between the shell and the screw)
Safety: IEC61010-1 (CAT Ⅲ 600V、Pollution 2), JJG724-1991, I JJG166-1993, DL/T967-2005 etc
General Information
Power Supply: DC 7.4V 2.6Ah lithium rechargeable battery
Product Weight: 850g
Product Size: 180mm×100mm×40mm
Standard Accessories: TTest wires (Red 5mx 2 , Black 5mx2) , USB Cable + Software CD x 1 ,Charger x 1, Manual x 1 , Pouch x 1
