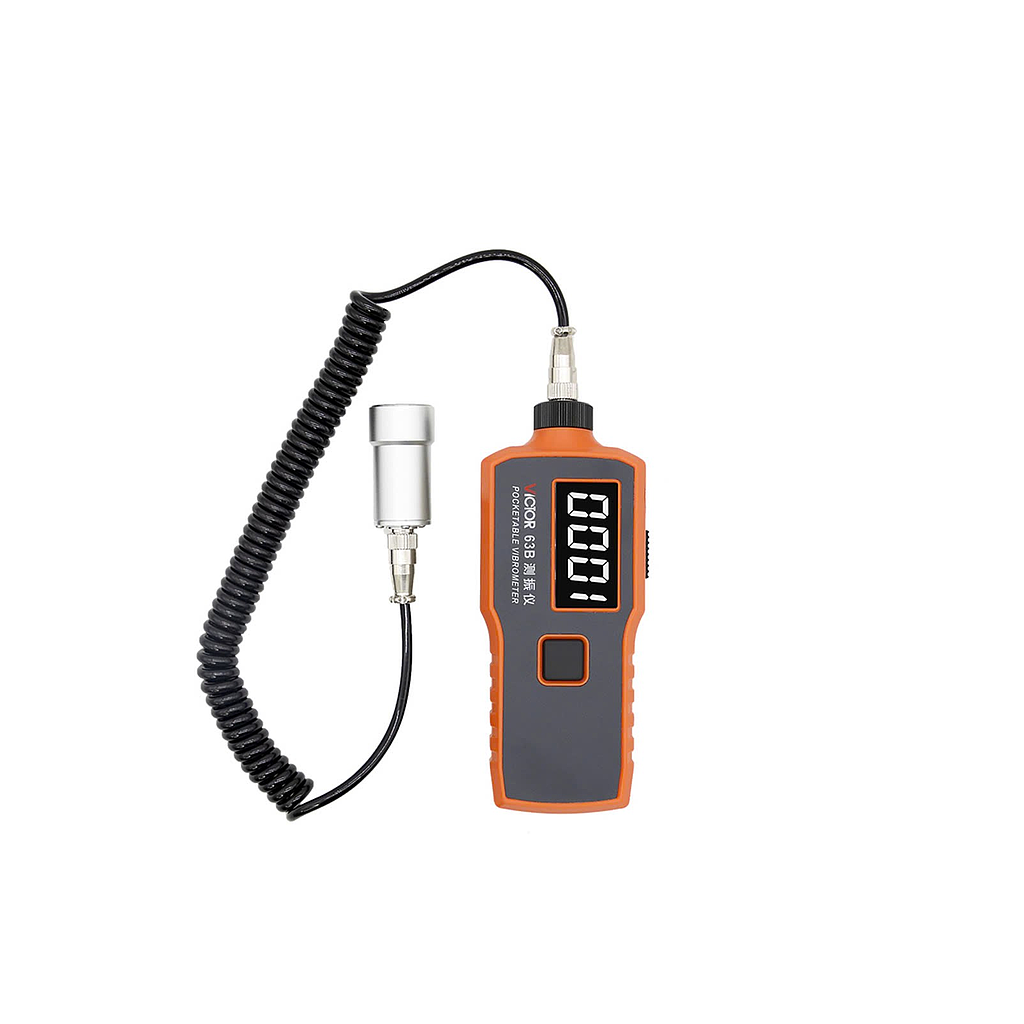

VICTOR 63B Vibration Meter (0.1～199,9m/s2)

Measurement range: acceleration : 0.1～199.9m/s2 (Semi-peak)

Velocity:0.1～199.9mm/s (RMS)

Displacement amplitude:1 ～ 1999μm(peak to peak)

Frequency response:

Acceleration : 10Hz～1000Hz ,≤±10%

Velocity: 10Hz～500Hz,≤±10%

Displacement amplitude:10Hz～200Hz, ≤±10%

Linearity and Accuracy

Displacement: 0～20μm,≤±10% ＞20μm, ≤±5%

Velocity: 0～2.0mm/s, ≤±10% ＞2.0mm/s, ≤±5%

Acceleration : 0～2.0m/s², ≤±10% ＞2.0m/s², ≤±5%

Display : Three semi-digital liquid crystal display

Power supply: laminated battery (9V),one piece

Low voltage indication: When the battery voltage drops below 5.5V, the screen will prompt low voltage, then replace the battery with new one. In a minute if there is no measurement, it will automatically shut down.

Hold function: The displayed vibration value is frozen and kept for one minute after the MEAS button is released .

Environmental:

Environment temperature : 0 ～ 40 ℃

Relative humidity: ≤ 80%

Atmospheric pressure : 75 ～ 106kpa

overall dimensions:185(H)×68(W)×30(D)mm

Weight: 380g(including battery)
