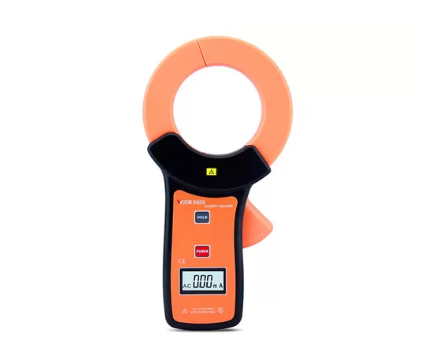

VICTOR 6800 Clamp Leaker (0.00mA ~ 1200A)

Range:0.00mA~1200A

Resolution:0.01mA

Accuracy(23℃±3℃, below 70%RH)

0.00mA~59.9A: ±1.5%±5dgt

60.00A~199A: ±2%±5dgt

200.0A~599A: ±3%±5dgt

600A~1200A: ±4%±5dgt

Power:Zn-Mn dry battery,6F22,9V

Size of jaw:Φ68mm

Sampling Rate:about 2 times/s

USB Interface:Data stored in the memory of the meter via USB upload to PC, or on-line monitoring

Storage:99units,all used when display FULL

Peak Hold:Push HOLD without release, the meter will show the peak value during the pushing period

Reading Hold:DH indicating when the reading is hold

Out of Range:OL indicating when the current is out of range

Working Current:5mA

Line Voltage:circuit test below AC1600V

Range Shift:Automatically
