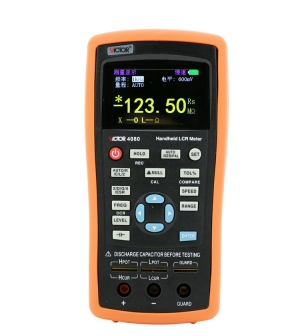

VICTOR VC4080 Hand-held LCR Meter (100KHz)

Testing frequency: 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz

Basic accuracy: 0.3%

Electrolytic capacitor mode:√

DCR mode: ×

Bias Voltage: ×

Electric level: 0.6Vrms

Screen: 2.8 inches TET LCD

Digits display: Main parameter: 5 digits; auxiliary parameter: 5 digits

Measuring parameters

Main parameter: L/C/R/Z

Auxiliary parameter: X/D/Q/ESR

Measuring Range: (L) 0-2000H

Measuring Range: (C) 0-20mF

Measuring Range: (R) 0-20MΩ

Measuring speed: 1 time/s (slow), 2 times/s (moderate), 4 times/s (fast)

Standard Accessories: Mini-USB cable; power adapter; short-circuit plate; plug made of red and black rubber; Lithium battery with large capacity
