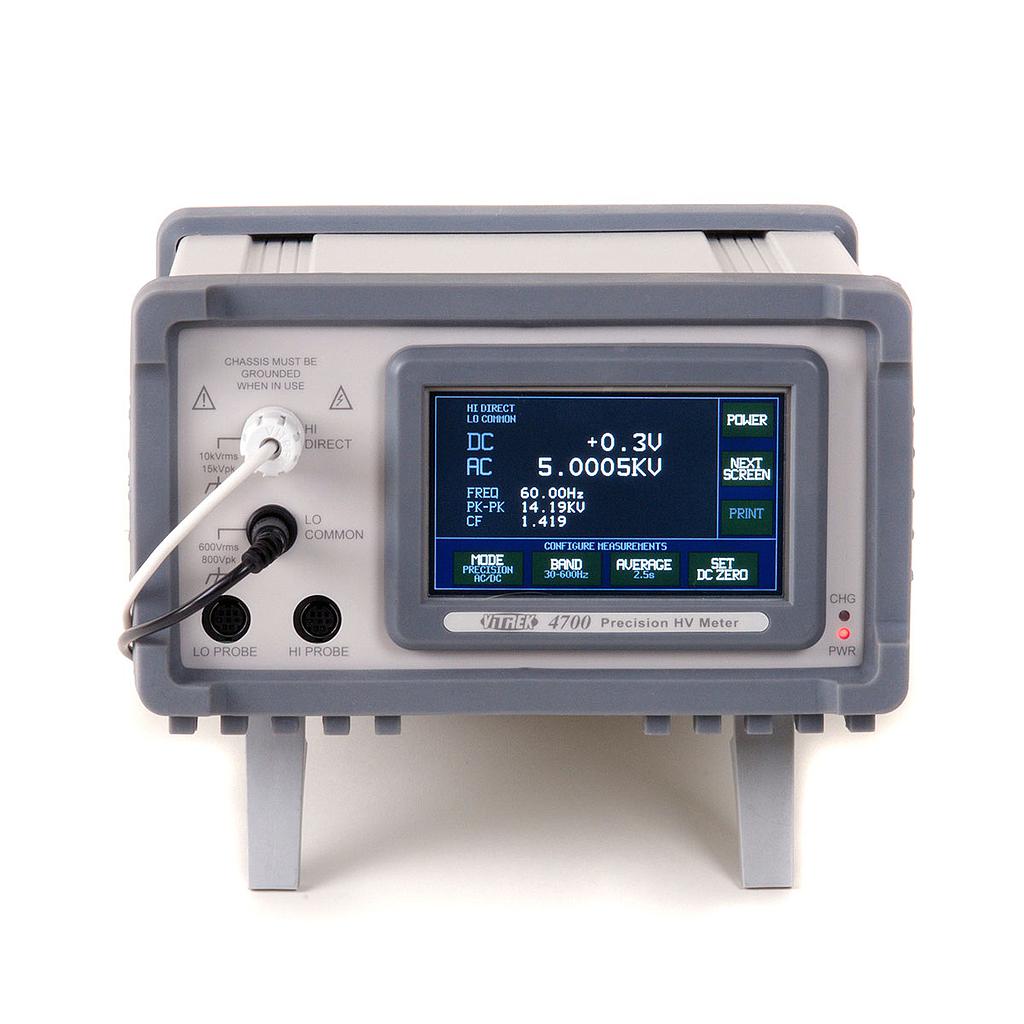

Vitrek 4700 Precision High Voltage Meter

AC/DC Voltage Measurement Resolution: Selectable 4, 5 or 6 digits

Measurement Functions: DC Voltage, True RMS AC Voltage, Ripple, Peak to Peak, Crest Factor & Frequency Measurement (4 digits 0.01 Hz to 600Hz)

Measurement Time: Selectable down to 16mS (60 readings per sec.)

Maximum Input to Common Terminal: 3 KV Peak for 1 sec, no damage

Accuracy Specifications: Valid one year ± 5C from Cal temperature

Operating Environment: 0 - 50C, <85% RH (non-condensing)

Dimensions: 218mm (8.5”) wide x 130mm (5”) high x 253mm (10”) deep, nominally

Weight: 2.4kg max (4kg shipping)

AC Source: 45 to 450Hz, 100 to 265Vrms at <15W (20VA) using supplied external power supply

DC Source: 11 to 16Vdc at <1.2A, using a center positive 2.5mm DC power connector

BP-47 Battery Option Up to 11hrs continuous operation
