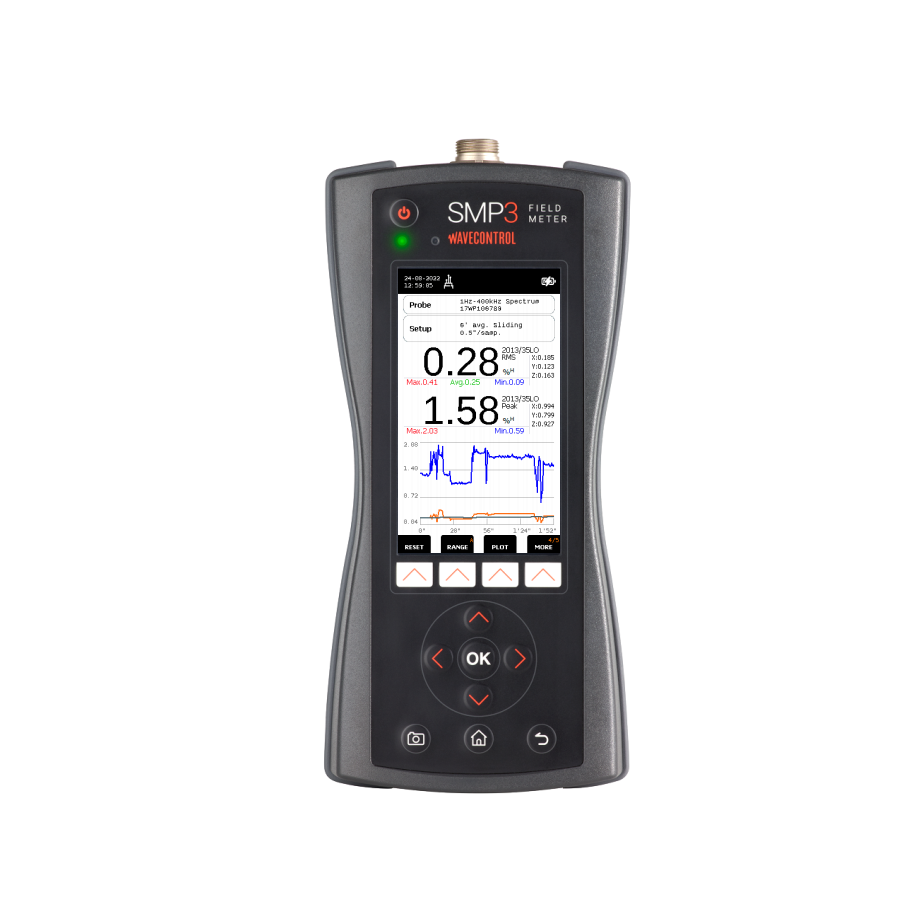

Wavecontrol SMP3 Dual Electromagnetic Field Meter

Field probes: Automatic detection and recognition

Broadband: 0 Hz - 60 GHz (depending on field probe)

Spectrum analysis: up to 10 MHz

Weighted Peak Method: 1 Hz - 10 MHz (Real time WPM for direct comparison with limits)

Readout values: Total field (instantaneous, max., min. and average) Field components (X, Y, Z)

E Field units: V/m, kV/m, μW/cm2, mW/cm2, W/m2, %

H Field units: nT, μT, mT, T, A/m, %, mG, G

Log time: Configurable (from 0.5 s to 6 min)

Average modes: Fixed o Sliding, according to international standards

Average intervals: 10 s, 15 s, 30 s, 1 min, 2 min, 5 min, 6 min, 10 min, 15 min, 30 min

Schedule measurement: Customized (up to 24 hours)

Memory capacity: More than 1 million samples

Data downloading: USB-C and fibre optics

Firmware updating: USB-C

Alarm: 2400 Hz audible signal (adjustable threshold)

Display type: Color transmissive TFT (480 x 272 pixels)

GPS (optional): Built-in u-blox 8 (56 independent tracking channels)

Digital Output: Probe direct output // Digital output through USB-C for WP400 family probes

Battery: Internal rechargeable Li-ion

Autonomy: > 24 hours

Temperature range: -10 ºC to +50 ºC

Humidity: 5% to 95%, non-condensing

Size: 100 x 215 x 40 mm (3.9 x 8.4 x 1.5 “)

Weight: 635 g (22.4 oz.)

Datasheet
