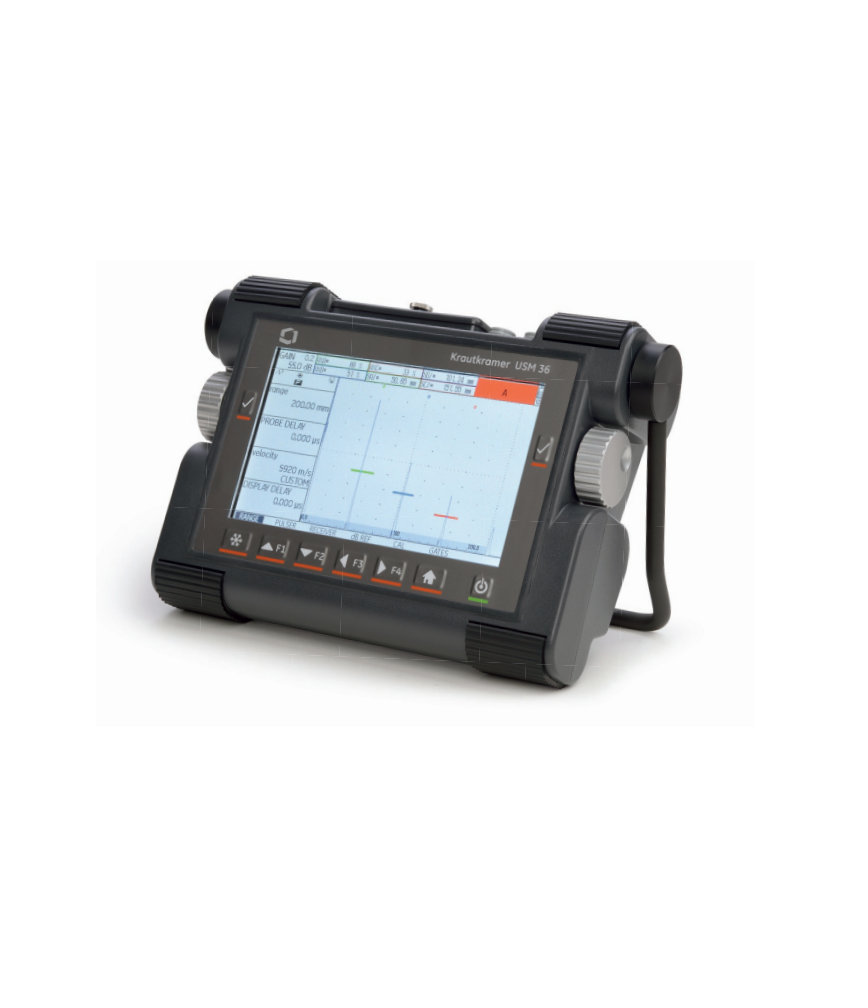

Waygate Technologies USM 36 Universal Portable Ultrasonic Flaw Detector (4 ~14,108 mm)

Display screen

Size Diagonal: 7”

Active range (W × H): 152.4 × 91.44 mm2

Resolution (W × H): 800 × 480 pixels

Range: 4 … 14,108 mm (555“) for longitudinal wave

Display

Display shift (delay): –15 … 3,500 μs

Probe delay: 0 … 1,000 μs

Velocity: 250 … 16,000 m/s

PRF: Automatically optimized 15 … 2,000 Hz, 3 automatic setting modes: Auto Low, Auto Med, Auto High, Manual

Connectors

Probe connectors: 2 × LEMO-1 or 2 × BNC

USB interface: USB type B connector

Service interface: LEMO-1B, 8 pin

Pulser

Pulser mode: Spike pulser, optionally: Square-wave pulser

Pulser voltage (SQ mode): 120 … 300 V, in steps of 10 V with a tolerance of 10%

Pulser falling/rising time: max. 10 ns

Pulser width (SQ mode): 30 … 500 ns, in steps of 10 ns

Pulser amplitude (Spike mode): low: 120 V, high: 300 V

Pulser energy (Spike mode): low: 30 nS, high: 100 nS

Damping: 50 ohms, 1000 ohms

Receiver

Digital gain: Dynamic range 110 dB, adjustable in steps of 0.2 dB

Analog bandwidth: 0.5 … 20 MHz

Equivalent input noise: <80 nV/√Hz

Filters:

Broadband: 1-5 MHz / 2, 2.25 MHz / 4, 5 MHz / 10 MHz / 13, 15 MHz

Rectification: Positive half-wave, negative half-wave,

full wave, RF signal

Gates

Independent gates:

Gates A and B (triggering by gate A),

Gate C (option, triggering by gate A or B)

Measurement mode: Peak, Flank, J-FLANK, FIRST PEAK

Memory

Card slot: SD-card slot for all standard SD-cards

Capacity: 8 GB, SD-card

Datasets: UGO data structure in ASCII

Reports: JPG or BMP format

General

Battery: Li-Ion, operating time: 13 hours with full charge / Charging method (standard): internal with power adapter / Charging method (optional): external charger / Charge level: proportional charge level indicator

Power adapter:

Universal power supply unit

100 … 240 VAC, 50/60 Hz

Size (W × H × D): 255 × 177 × 100 mm (10” × 7.0” × 3.9”)

Weight: 2.2 kg incl. battery

Languages: Bulgarian, Chinese, Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish

Damp heat and humidity (storage)

EN 60068 Part 2-30

6 cycles: 9 hrs at +25°C up in 3 hrs to

+55°C, 9 hrs at +55°C then down to

+25°C in 3 hrs, at 93% humidity

Vibration EN 60068 Part 2-6

2g per axis, 5 … 150 Hz, 1 oct/min, 25 cycles

Shocks EN 60068 Part 2-27

1000 cycles per axis, 15 g, 11 ms, half-sine

Enclosure IP66 according to IEC 60529

Operating temperature: –10 … 55°C

Cold operation: –10°C for 16 hrs, 502.5 Procedure II

Heat operation: +55°C for 16 hrs, 501.5 Procedure II

Storage temperature: –20 … +60°C, without battery

Cold storage: –20°C for 72 hrs, 502.5 Procedure I

Heat storage: +70°C for 48 hrs, 501.5 Procedure I

Datasheet
