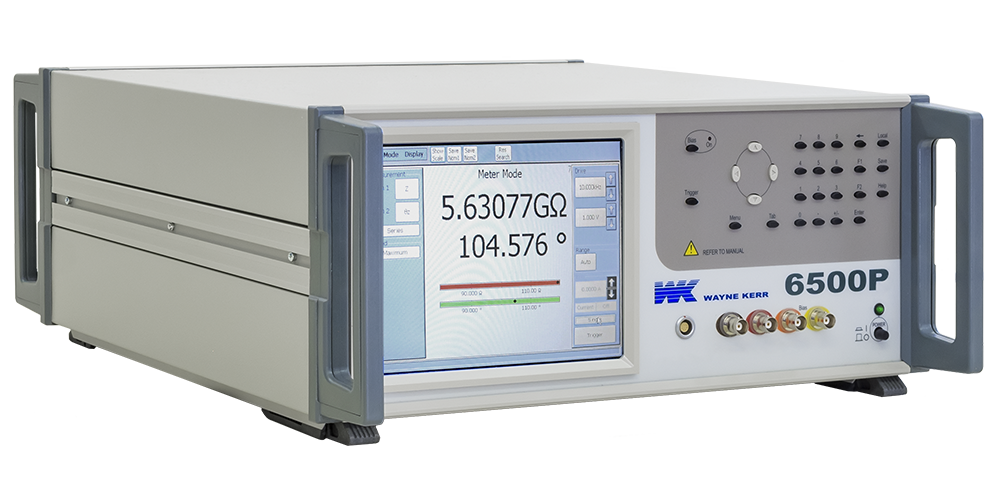

Measurement Function:
Capacitance (C)
Inductance (L)
Resistance (R)
Reactance (X)
Conductance (G)
Susceptance (B)
Dissipation Factor (D)
Quality Factor (Q)
Impedance (Z)
Admittance (Y)
Phase Angle (Ø)
Frequency Range:
20Hz to 120MHz
Frequency step size: <1 mHz
Accuracy of set frequency: ±0.005"%
AC Drive Level:
10 mV to 1V rms (varies with frequency)
200 µA to 20 mA rms (varies with frequency)
Measurement Speeds:
4 speeds selectable
Up to 20 measurements per second for test frequencies ≧100 Hz
Accuracy:
Dissipation factor - ±0.0005 (1+D^2)
Quality factor - ±0.05 %( Q+1/Q)
Capacitance/ Inductance/ Impedance - ±0.05%
Accuracy varies with frequency, drive level and measured impedance
DC Bias Current (Option):
/D1 0 to +100mA dc bias current and 0 to +40V dc bias voltage
/D2 -40V to +40V dc bias voltage
Power supply. Input voltage 90 V AC to 264 V AC (Autoranging). Mains frequency 47 to 63 Hz
Display: 8.4" VGA (650 x 480) color TFT with touch panel
Printer:
HP-PCL compatible graphics printing (local and network)
Centronics / parallel printer port, Epson compatible text/ticket printing (local)
Remote Trigger: Rear panel BNC with internal pull-up, operates on logic low or contact closure
GPIB Interface: External instrument control 24 pin IEEE 488 connector
USB Interface:
Two Universal Serial Bus (USB) interfaces
USB 1.1 compliant
VGA Interface: 15-way D-type connector to drive an external monitor in addition to the internal screen
Network Interface: 10/100-BASETX Ethernet controller. RJ45 connector
Keyboard Interface: Standard USB or PS/2 keyboard port. Instrument front panel remains active with keyboard plugged in
Mouse Interface: Standard USB or PS/2 mouse port. Touch screen remains enabled when the mouse is connected
