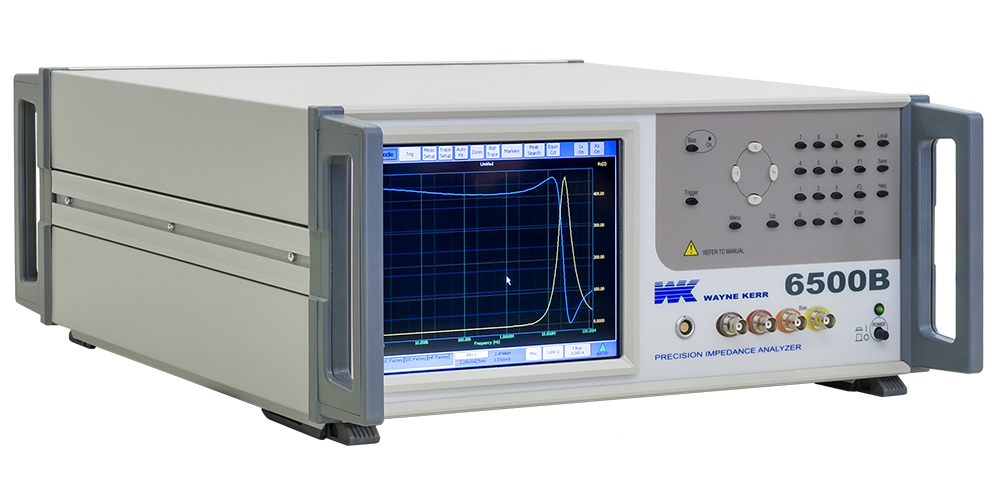

Measurement Function:
Capacitance (C)
Inductance (L)
Resistance (R)
Reactance (X)
Conductance (G)
Susceptance (B)
Dissipation Factor (D)
Quality Factor (Q)
Impedance (Z)
Admittance (Y)
Phase Angle (Ø)
Frequency Range:
20Hz to 30 MHz
Frequency step size: 0.1 mHz
Accuracy of set frequency: ±0.005"%
AC Drive Level:
10 mV to 1V rms (varies with frequency)
200 µA to 20 mA rms (varies with frequency)
Measurement Speeds:
4 speeds selectable
Up to 20 measurements per second for test frequencies ≧100 Hz
Accuracy:
Dissipation factor - ±0.0005 (1+D2)
Quality factor - ±0.05 %( Q+1/Q)
Capacitance/ Inductance/ Impedance - ±0.05%
Accuracy varies with frequency, drive level and measured impedance
DC Bias Current (Option):
/D1 0 to +100mA dc bias current and 0 to +40V dc bias voltage
/D2 -40V to +40V dc bias voltage
Binning (Option):
10 bins with absolute and percentage limits
25 way d-type interface connector
/B1 (Non-isolated) Comon 0V Bin outputs 0 to 5V(normal) with >10mA current sink capability
/B2 (isolated) Comon 24V input outputs 0 to 24V with >10mA current source capability
Input Specification:
Power supply - Input voltage 90 V AC to 264 V AC (Autoranging)
Mains frequency 47 to 63 Hz
Display: 8.4" VGA (640 x 480) color TFT with touch panel
Measurement Connections:
Four front panel BNC connectors permit two, three or four terminal connections with the screens at ground potential.
1J1011 Component Fixture (supplied as standard) allows connection to leaded components and devices.
Printer:
HP-PCL compatible graphics printing (local and network)
Centronics / parallel printer port, Epson compatible text/ticket printing (local)
Remote Trigger: Rear panel BNC with internal pull-up, operates on logic low or contact closure
GPIB Interface: External instrument control 24 pin IEEE 488 connector
USB Interface:
Two Universal Serial Bus (USB) interfaces
USB 1.1 compliant
VGA Interface: 15-way D-type connector to drive an external monitor in addition to the internal screen
Network Interface: 10/100-BASETX Ethernet controller. RJ45 connector
Keyboard Interface: Standard USB or PS/2 keyboard port. Instrument front panel remains active with keyboard plugged in
Mouse Interface: Standard USB or PS/2 mouse port. Touch screen remains enabled when the mouse is connected
