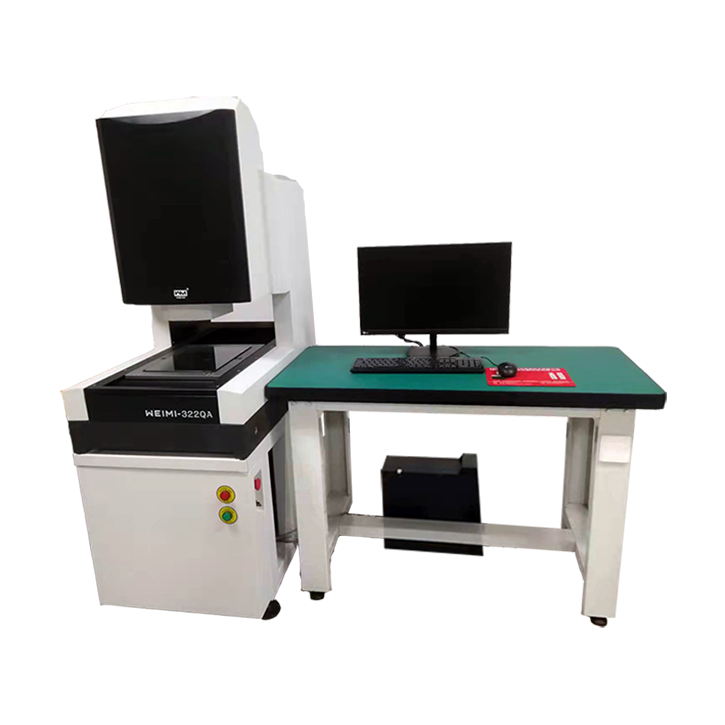

Overall dimension (L*W*H): 950*520*1700 mm
Measuring range (Y/X/Z): 200/300/200 mm
Workbench
Working desk: 460*360 mm
Glass surface: 360*260 mm
Load-bearing: 35 kg
Total weight: 300 kg
Image measurement and CCD: weimi20 1/3 inch Color high-resolution camera 520TV line（Optional）
Measurement system
Zoom objective: Navitar fully automatic zoom lens imported from the United States
Video magnification: 30-225X
Object field of view: 10.6-1.6 mm
Working distance: 90 mm
Linear accuracy (µm): X/Y Accuracy ≤2.2+L/200 Z, Accuracy ≤4+L/50 ("L" refers to the measured object length in mm)
Repeatability: ≤0.003mm
Positioning accuracy: 0.001mm
Illumination: Coaxial light/LED surface light, brightness adjustable
Temperature & Humidity: 15-30°C, relative humidity: 20-80% (non-condensing)
Power supply: 220V±10% (AC) 50Hz
Machine credit: 1100W
