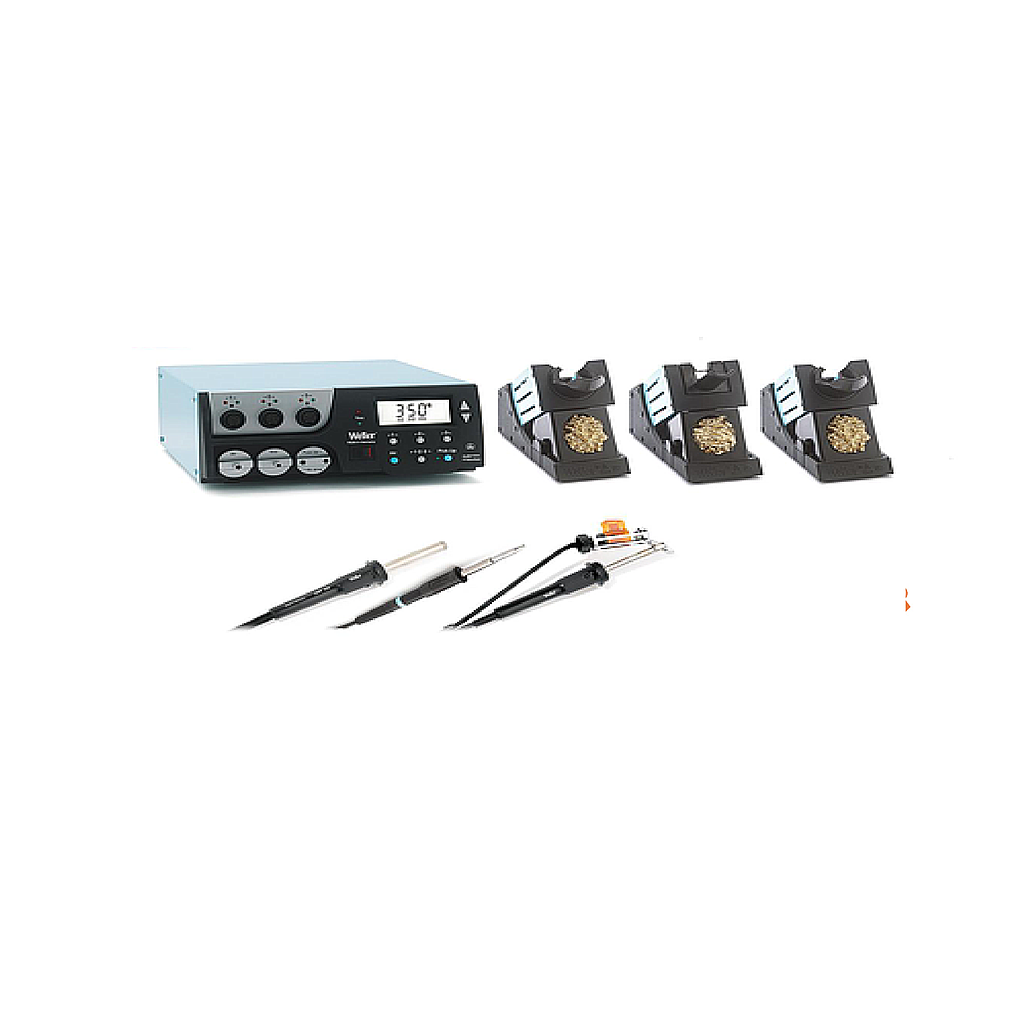

| SOLDERING STATION Weller WR 300MER | |
|
|
This station is ESD safe. |
| Dimension L x B x H: | 273 x 235 x 102 mm (10,75 x 9,2 x 4,02 inch) |
| Weight: | approx. 6,7 kg |
| Channels: | 3 |
| Net supply: | 230 V |
| Power supply: | 360 W |
| Protection class: | I |
| Fuse: | T500 mA (230 V / 50/60 Hz) |
| Fuse overcurrent release: | 2 A |
| Temperature control of channels: | Soldering and desoldering tool, continuously variable from 50°C - 550°C (150°F - 999°F) |
| Temperature control range is tool independent | |
| Temperature accuracy: | ± 9°C (± 17°F) |
| Temperature stability: | ± 2°C (± 4°F) |
| Bleeder: | Soldering tip (Tip to ground) conforms IPC-J-001 |
| Bleeder voltage: | Soldering tip (Tip to ground) conforms IPC-J-001 |
| Pump: | (periodic duty 30/30s) |
| Max. vacuum: | 0,7 bar |
| Max. delivery rate: | max. 18 l/min |
| Hot air: | max. 15 l/min |
| Display: | LCD |
| Temperature control: | Buttons |
| Equipotentional bonding: | Via 3.5 mm pawl socket at the back of device (hard grounded normal state) |
| USB interface: | yes |
