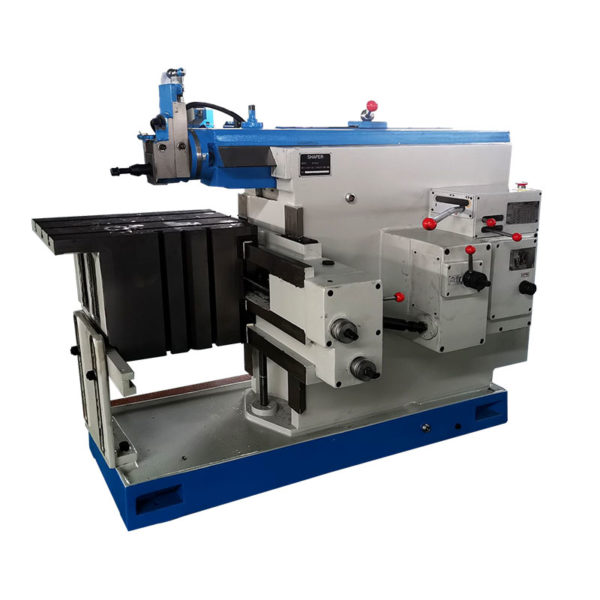

WMT CNC BC6066 Shaping Machine (3W)
Maximum planing length: 630/660mm
Maximum distance from the bottom of the working table: 385mm
Lateral travel: 630mm
Vertical stroke: 360mm
Tool frame travel: 120mm
Sleeper reciprocating times (per minute): 14/20/28/40/56/80
Main motor power: 3W
The maximum size（width*thickness）of the handle: 20×30mm
The size of the T groove in the center of the worktable: 18mm
Angle of rotation: ±60°
Workbench size: 630×400/660×400mm
Shape size: 2000×1300×x150/2357×1225×1480mm
Machine tool weight (about): 1750/1870,1800/1920KG
Package dimensions: 2000/1300/1650mm
