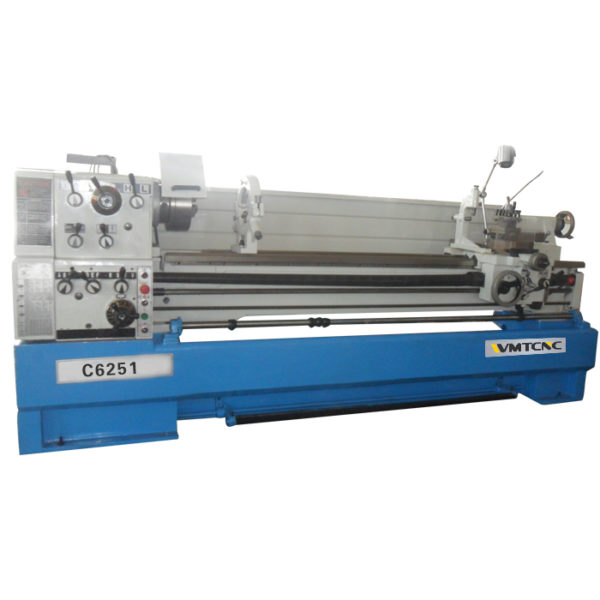

WMT CNC C6251 Engine Lathe (7.5kw)

Swing over bed: 510mm

Swing over cross slide: 300mm

Swing in gap: 738mm

Length of gap: 165mm

Distance between centers: 1000mm /1500mm/2000mm/3000mm

Width of bed: 200mm

Spindle nose: D1-8

Spindle bore: 80mm

Taper of spindle bore: MT7

Range of spindle speed: 12 changes 25-1600r/min

Max.travel of cross slide: 326mm

Leadscrew thread pitch: 6mm or 4T.P.I.

Max.Section of tool: 25×25mm

Longitudinal feeds range: 35 kinds, 0.059-1.646mm/rev

Cross feeds range: 35 kinds, 0.020-0.573mm/rev

Inch threads range: 60kinds, 2-112T.P.I

Tailstock quill diameter: Φ75mm

Tailstock quill travel: 180mm

Tailstock quill taper: MT5

Power of main motor: 7.5kw(10HP) 3PH

Power of coolant pump: 0.1kw(1/8HP) 3PH

Overall dimension: 2900/3400×1120×1430mm

Packing size: 2960/3460×1130×1820mm

Net weight: 2335/2685kgs

Gross weight: 2700/3070kgs
