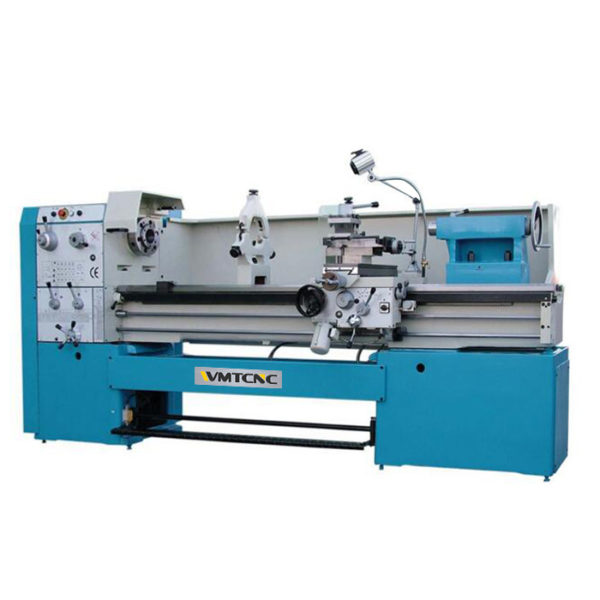

WMT CNC CD6240B Engine Lathe

Max.swing over bed: 400mm

Max.swing over cross slide: 225mm

Max.swing over gap: 530mm

Effective length of gap: CC: 260mm

Center Distance: 1000/1500/2000/3000

Bed Width: 330mm

Spindle hole: 65mm

Spindle nose: ISO-C6

Spindle speed(Number): (15steps)20-1800rpm

Longitudinal feeds range: 66kinds 0.072-4.038mm/rev(0.0027 0.15inch/rev)

Cross feeds range: 66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev)

Metric threads range: 66kinds 0.5-28mm

Inch threads range: 66 kinds 1-56inch

Max.travel of cross slide: 300mm

Max.size of tool shank: 20×20mm/25×25mm

Dia.of tail stock sleeve: 65mm

Taper of tail stock sleeve: MT5

Max.travel of tail stock: 120mm

Main drive motor: 7.5kw or 5.5kw

Coolant pump motor: 125W

Packing size: 2420/2920/3460/4720×1150×1800mm
