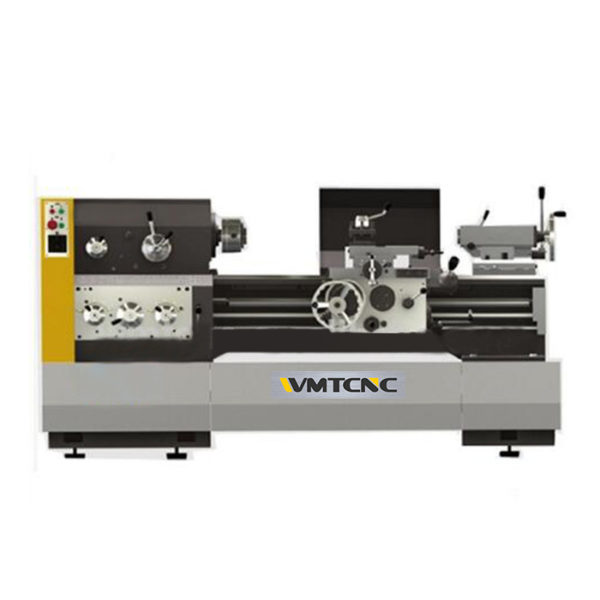

WMT CNC CS6240 Engine Lathe (7.5kw)

Max. swing over bed: Φ400mm

Max. swing in gap: Φ630mm

Max. swing over slide: Φ220mm

Max. workpiece length: 750/1000/1500/2000/3000mm

Spindle bore: Φ52mm

Type of spindle:ISO 702/III NO.6 bayonet lock

Spindle speed: 24 steps 9-1600rpm

Spindle motor: 7.5kw

Diameter of quill: Φ75mm

Max. travel of quill: 150mm

Taper of quill: MT5

Tool O.D. size: 25×25mm

Max. X travel: 145mm

Max. Z travel: 320mm

X feed range: 93 kinds 0.028-6.43mm/r

Z feed range: 93 kinds 0.012-2.73mm/r

Metric threads: 48 kinds 0.5-224mm

Inch threads: 48 kinds 72-1/4t.p.i

Cooling pump: 60w

Length: 2382/2632/3132/3632/4632mm

Width: 975mm

Height: 1230mm
