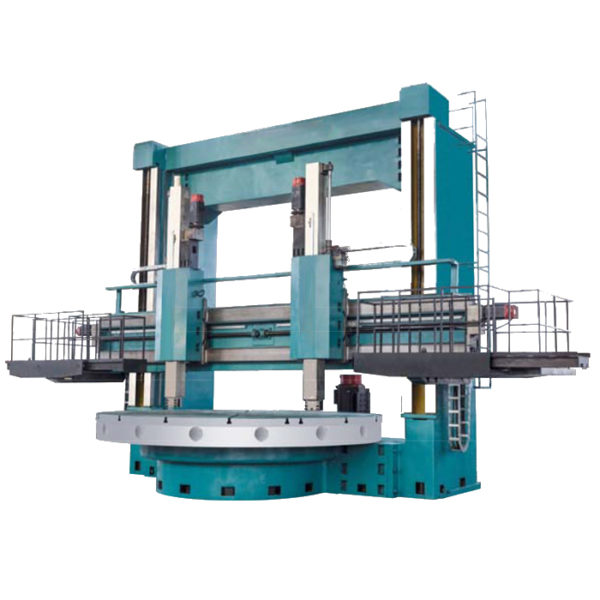

Table dia. : 3200mm
Max. turning dia.: 4000mm
Max. workpiece height: 1600mm
Max. workpiece weight: 20T
Max. tool size: 50mm
Right toolpost max. cutting force: 35000N
Left toolpost max. cutting force: 30000N
Total cutting force: 43000N
Worktable max. torque: 63000N.m
Worktable speed steps: 16 steps
Worktbale speed range: 2-63r/min.
Toolpost feeding range: 0.1-500mm/min
Right toolpost travel (horizontal/vertical): 2200/1000mm
Left toolpost travel (horizontal/vertical): 2200/1000mm
Slider section: 240x240mm
Left/right toolpost fast moving speed: 2000mm/min.
Cross beam max. travel: 1400mm
Corss beam up/down speed:350mm/min.
Main motor power: 55kw
Cross beam up/dowm motor power: 11KW
Left/right toolpost feeding motor torque: 27N.m (Beijing CTB servo motor)
Total power of the machine: 72KW
Machine weight: 40T
Machine size: 7200x5400x5200MM
