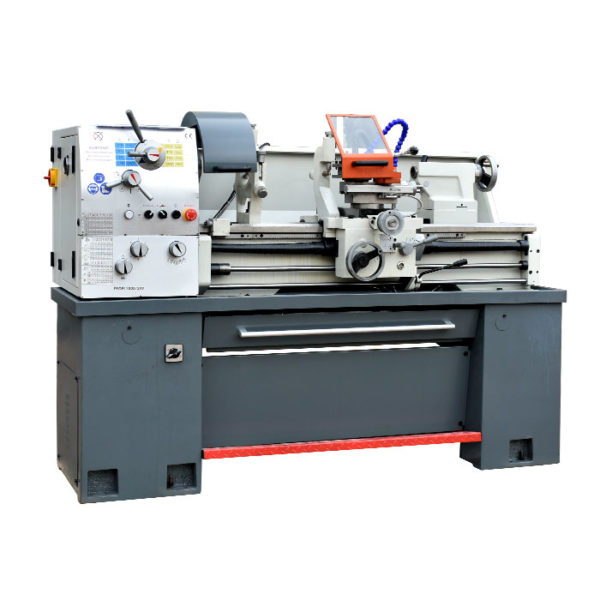

Max. swing over bed: 356mm
Max.swing over cross slide: 220mm
Max.swing in gap: 506mm
Max.length of workpiece: 1000mm
Width of bed: 206mm
Spindle speed range: (16 changes)45-1800rpm
Spindle bore: 38mm or 51mm
Spindle nose: D4 or D5
Taper of spindle bore: MT5 or MT6
Center height: 178mm
Cross slide travel: 150mm
Max.section of tool: 16x16mm
Longitudinal feeds range:
043-0.653mm/rev(Metric lathe)
0.0012-0.0297in/rev(Inch lathe)
External diameter: 45mm
Max.travel: 100mm
Taper of bore: MT3
Main motor power: 1.5/2.4KW
Coolant pump power: 40W
Packing size(LxWxH): 1950X750X1500mm
Net weight: 700kg
Gross weight: 800kg
