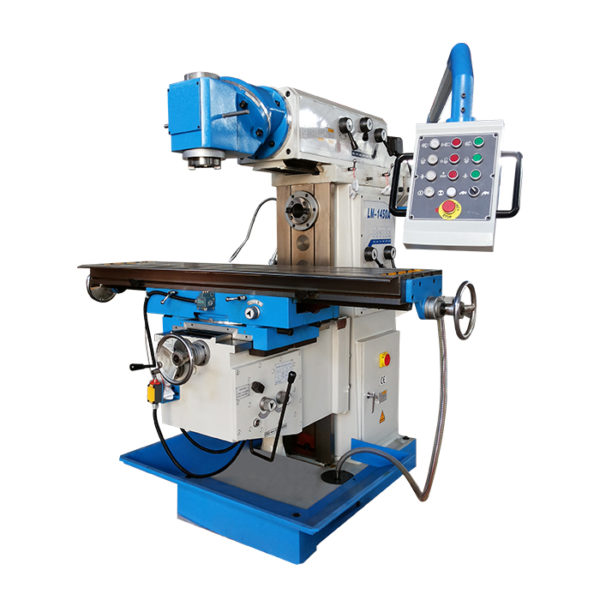

Spindle taper: ISO50(V) ISO50(H)
Distance from vertical spindle to working table: 0-450mm
Distance between spindle axis and ram surface: 100-500 mm
Arm travel: 500mm
Rabge of spindle speed: (12)60-1750r.p.m(V).(12)60-1800r.p.m(H)
Swivel angle of swivel head: 360degrees
Workbench maximum turning around: 45 degrees
Table size: 1600x360mm
Table travel(horizontal/cross/vertical): 1000/340/450mm
Range of longitudinal travel: (8steps)30-630mm/min(max2000)
Range of cross travel: (8steps)30-630mm/min(max2000)
Range of vertical travel: (8steps)18-300mm/min (max630)
T-slot NO./width/distance of table: 3/18/80mm
Main motor: 4.0kw (V), 4.0KW(H)
Motor of cooling pumps: 120w
Speed of cooling pumps: 25L/min
Max weight of workpiece: 600kg
Overall dimension: 2120x2000x2250mm
N.W/G.W: 2650/2850kg
