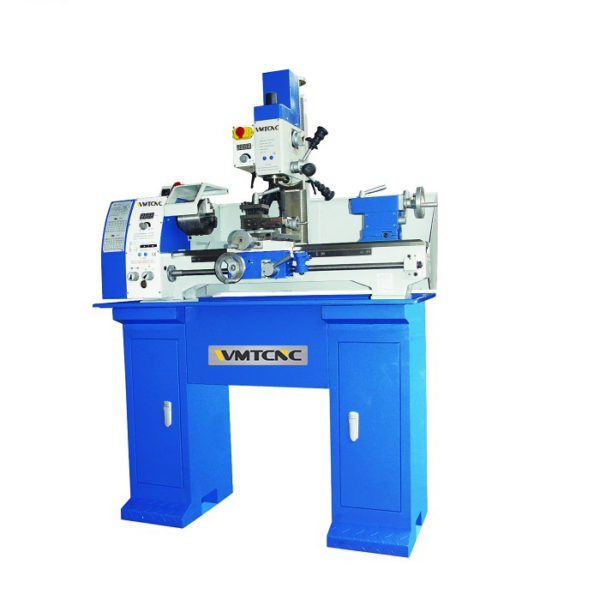

Distance between centers: 500/750mm
Swing over bed: 250mm
Swing over cross slide: 150mm
Spindle taper: MT4
Width of bed: 135mm
Spindle bore: 26mm
Range of spindle speeds（variable speed: 50-2500rpm
Range of cross feed: 0.07 -0.20mm /r
Range of longitudinal feed: 0.085-0.832mm/rev
Range of inch threads: 8-56T.P.I
Range of metric threads: 0.2 -3.5mm
Top slide travel: 70mm
Cross slide travel: 115mm
Tailstock quill travel: 60mm
Taper of tailstock quill: MT2
Main motor: 0.75kw
Drilling and milling head: BF16
Spindle taper: MT2
Spindle travel: 52mm
Range of spindle speeds（variable speed: 50-2250rpm
Max.distance from spindle nose to table: 280mm
Max.distance from spindle to columm: 185mm
Motor power: 500w
Packing size (for machine): 1200/1400 × 580 × 860mm
Packing size (for stand): 760x530x415mm
N.W: 195/220kgs
