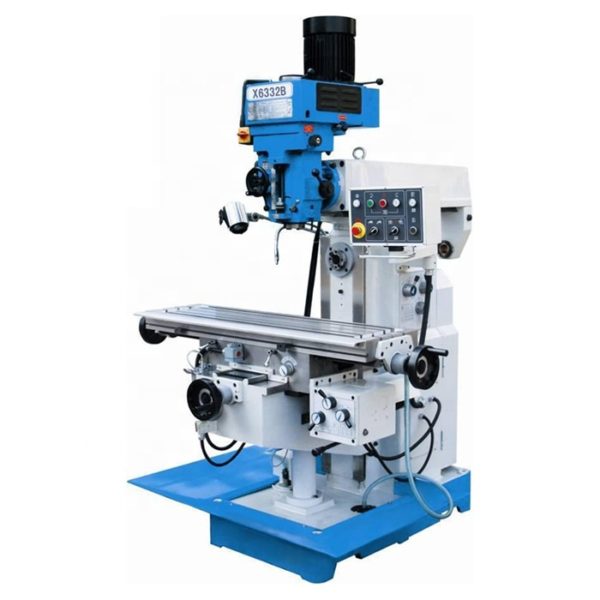

Spindle taper: 7:24 ISO40 Vertical, NT 40 Horizontal
Milling head tilt (left/right): 90°
Spindle travel: 127mm
Spindle speeds range: 115-1750rpm, 40-1300 (horizontal 12 step)
Distance from spindle to column: 180-630mm
Distance from spindle to work table: 130-550mm
Arm travel: 450mm
Rotary arm: 360°
Table size: 1500×320mm
Max. travel of table: 600x300x420mm
T-slot number width distance: 3/14/70mm
Max load weight: 350kg
Main motor power: 2.2kW Vertical, 2.2 Horizontal
Motor of table power feed: 750W
Up/down motor of head stock: 1.1kW
Cool ant pump motor: 40W
Packing size: 1550x1650x2200mm
N.W/G.W: 1500/1700kg
