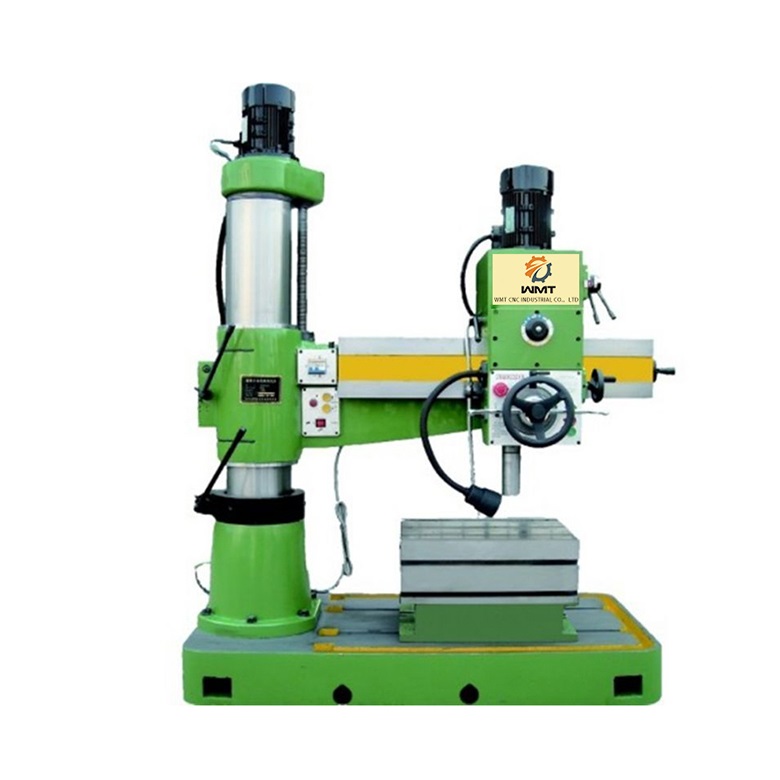

Max Drilling Diameter: steel 32 /iron 40mm
Spindle center to column: 360-1300mm
Spindle box travel: 650mm
Spindle nose to table: 260–1050mm
Spindle travel: 200mm
Spindle taper: 4 Morse
Spindle speed range: 75/135/240/350/590/1100r/min
Spindle speeds series: 0.10/0.16/0.25
Radial rotation Angle: 360°
Main motor power: 2.2kW
Lifting Motor Power: 0.75kW
Machine weight: 1400kg
Machine overall size (L*W*H mm): 1612×705×2070mm
