Technical data
- Differential Pressure:
Range: ±2 bar
Accuracy: < 3 % of the reading, within the range < ±200 Pa better than ±6 Pa
Resolution: 1 Pa within the range -210…210 hPa, otherwise 10 Pa
- Leakage test:
Range: 0~10 l/h, tested up to 8 l/h
Accuracy: < ±0,2~4 l/h, otherwise 5 % of the reading
Resolution: 0,1 l/h
- Internal temperature measurement:
Range: -20~60 °C
Accuracy: < ±1 °C
Resolution: 0,1 °C
- External temperature measurement (optional, e.g. with measuring pliers for temperature measurement or special wall temperature probe)
Range: 2 canals / 20~800 °C
Accuracy: < ±2 °C within the range of 0~133 °C, otherwise 1,5 % of the reading
Resolution: 0,1 °C
- Moisture measurement (optional)
Range: 0~100 % r.H. non condensing
Accuracy: ±2 % r.H., within the range of 10~90 % r.H., otherwise < 3 % r.H.
Resolution: 0,1 % r.H.
- Absolute pressure (optional)
Range: 300~1.100 hPa
Accuracy: ±1,5 hPa
Resolution: 0,1 hPa
- Current consumption: 4 AA rechargeable batteries or 4 AA disposable batteries 1,5 V
- Interfaces: USB interface for data transfer to a PC. It is possible to transfer the data directly from the meter to the Wöhlerthermal fast printer.
- Operating temperature: 5~40 °C
- Dimensions: 80 x 225 x 60 mm
Scope of delivery

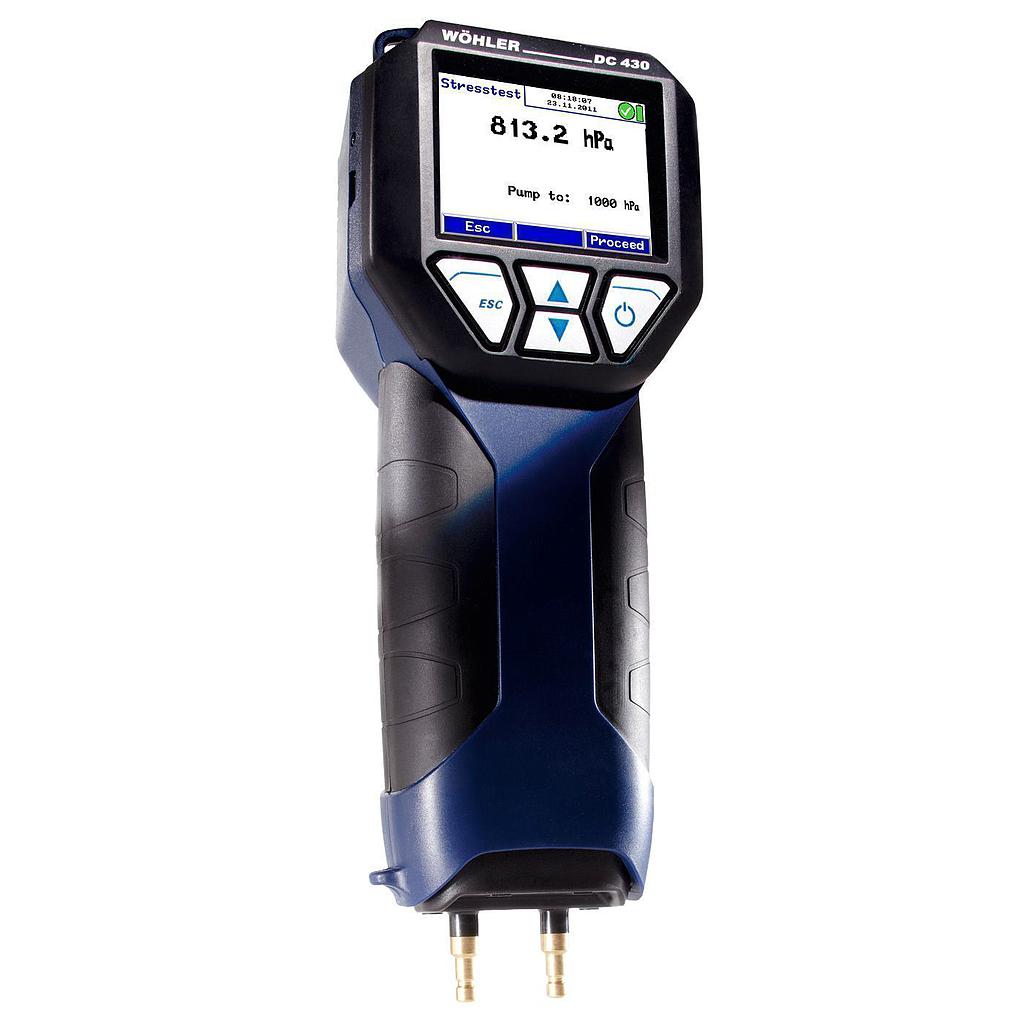

1 x Wöhler DC 430 US Version without case
1 x Plastic Case for Wöhler DC 410flow / DC 430
