Power Supply: 6VDC 4 PCS LR6 lkaline batteries

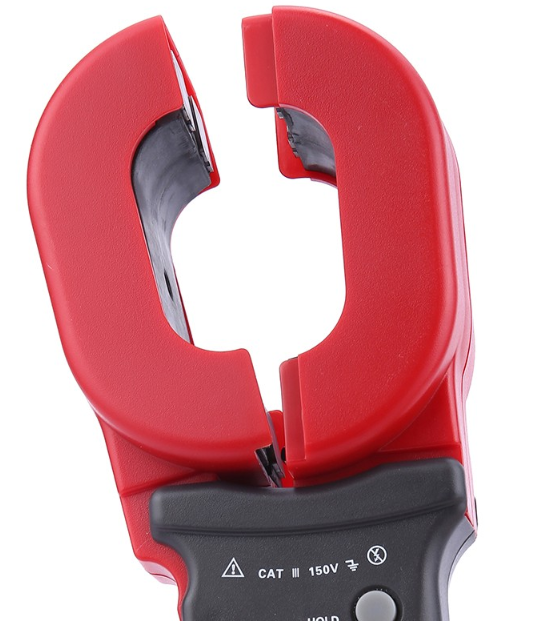

Clamp Size: 65mm×32mm
LCD Size: 4 Digits LCD display, Screen: 47mm×28.5mm
Range: 0.010Ω ~1200Ω
Resolution: 0.001Ω
Accuracy: ±1%±0.01Ω
Data Storage: 99 sets
Data Upload Function: RS232 Interface (Optional)
Auto Shutdown: Automatically power off after 5 minutes without any operate
Power Consumption: ≤50mA, Continuously working for 30 hours
Working Environment: -20℃~55℃ 20%~80%RH
Store Environment: -20℃~60℃; below 90%RH
Alarm Threshold Setting Range: Resistance: 1Ω~199Ω
Audible and Visible Alarm: "Beep-beep-beep” alarm sound, alarm symbol flashing, pressALkey to turn on/off and setting
Interference Signal Recognition: "Beep-beep-beep” indicator, NOISE symbol blinking
Protection Level: Double insulation
Structural Feature: Clamp CT
Shift: Automatic shift
External Magnetic Field: <40A/m
External Electrical Field: <1V/m
Single Measurement Time: 0.5 second
Resistance Measurement Frequency: >1KHz
Measured Current Frequency: 50/60Hz Automatic
Low Battery Voltage Indicator: When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed
Storage Full Indication: Storage data full of 99 sets, flashed display "MEM" symbol
Over Range Indication: Exceed range indication “OLΩ”, “L0.01” or “OL A”
Tester Weight: 1160g
Tester Dimension: 285mm×85mm×56mm
Product features
1. Self-test quickly, start immediately into the test.
2. Using the most advanced processing algorithms and digital integration technology.
3. The product is light weight, more in line with characteristics of hand-held devices.
4. New design, panel operation with 6 buttons, better performance.
5. Increase sound and light alarm function, with "beep-beep-beep” alarm sound.
6. Increase the interference signal recognition indicator function, with "beep-beep-beep” indicator.
7. Measurement range: 0.01Ω ~1200Ω
8. Stored data 99 Units. Lower power consumption, Maximum operating current less than 50mA.
Measurement Range & Accuracy
Measurement | Range | Resolution | Accuracy |
Resistance | 0.010Ω ~ 0.099Ω | 0.001Ω | ±(1%rdg+0.01Ω) |
0.10Ω ~ 0.99Ω | 0.01Ω | ±(1%rdg+0.01Ω) | |
1.0Ω ~ 49.9Ω | 0.1Ω | ±(1%rdg+0.1Ω) | |
50.0Ω ~ 99.5Ω | 0.5Ω | ±(1.5%rdg+0.5Ω) | |
100Ω ~ 199Ω | 1Ω | ±(2%rdg+1Ω) | |
200Ω ~ 395Ω | 5Ω | ±(5%rdg+5Ω) | |
400Ω ~ 590Ω | 10Ω | ±(10%rdg+10Ω) | |
600Ω ~ 880Ω | 20Ω | ±(20%rdg+20Ω) | |
900Ω ~ 1200Ω | 30Ω | ±(25%rdg+30Ω) |
