1. Test voltage: AC 25V±10%，50Hz；AC 1.25V±10%，50Hz 25VA
2. Measurement range and accuracy:
Measurable capacitance range: 0.1uF～6800uF ±（Reading1%+0.01uF）
Measurable inductance range: 50uH～20H ±(Reading3%+0.01mH)
Measurable current range: 5mA～20A±(Reading3%+0.1mA)
Measurable resistance range: 20mΩ～10kΩ±(Reading3%+1mΩ)
3. Overall dimension: 405mm×330mm×180mm
4. Weight of instrument: 8.5Kg (excluding test line)
5. Service conditions
Ambient temperature: -20℃～40℃
Ambient humidity: ≤85%RH
Working power supply: AC220V±10%，50±1Hz
Product features:

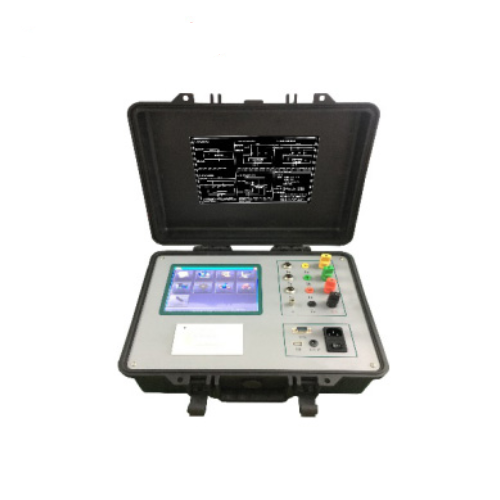

1. The Three Phases Capacitance and Inductance Tester instrument can measure the single capacitance (single-phase capacitance and three-phase capacitance) of group shunt capacitors without removing the wires. At the same time, the instrument can also measure the inductance of various reactors, which can meet the needs of various field application.
2. When measuring, the Three Phases Capacitance and Inductance Test instrument can display the measured capacitance value or inductance value, as well as the measured voltage, current, power, frequency, impedance, phase angle and other data, so as to better analyze the quality of the sample.
3. The Distribution Grid Capacitor Bridge Tester instrument adopts 8.0-inch 800 × 600 graphics dot matrix K600 + 65K color dgus screen with touch control operation. It can be observed clearly during the day and night, and the menu prompt is easy to operate.
4. The Automatic Capacitance Inductance Tester instrument has built-in large capacity nonvolatile memory, which can store 200 groups of measurement data.
5. The Automatic Capacitance Inductance Tester instrument is equipped with U disk interface, which can store any group of measurement data (limited by the capacity of U disk).
6. The Automatic Capacitance Inductance Tester instrument has built-in high-precision real-time clock function: it can calibrate the date and time.
7. The Automatic Capacitance Inductance Tester instrument is equipped with high-speed micro thermal printer, which can print measurement and historical data.
8. Automatic Capacitance Inductance Tester Instrument test power over-current protection function: power output short circuit will not damage the instrument.
