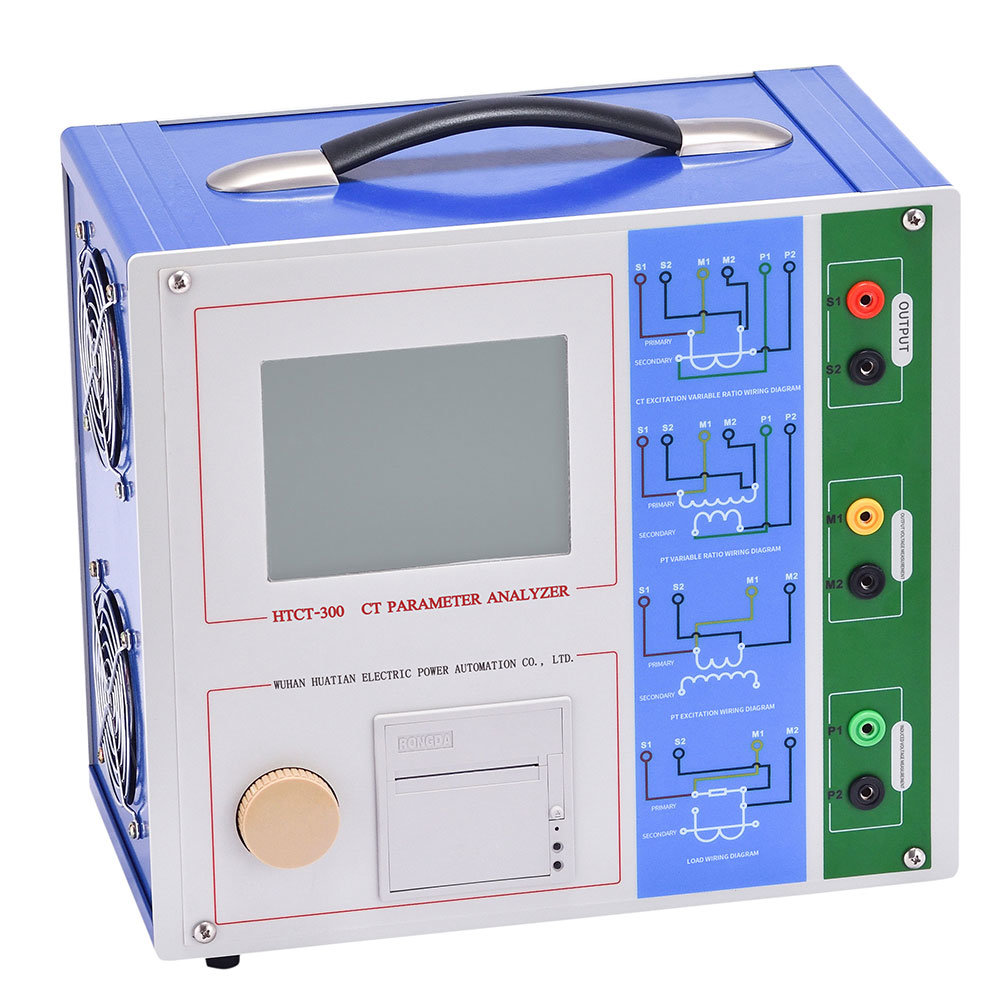

Wuhan HTCT-300 CT PT Tester

- Testing purposes: Protective CT
- Output: 0～180Vrms, 12Arms,36A（peak value）
- Voltage measurement accuracy: ±0.2%
- CT ratio measurement: Range: 1～30000; Accuracy: ±0.2%
- PT ratio measurement: Range: 1～10000; Accuracy: ±0.2%
- Phase measurement: Resolution: 0.5min; Accuracy: ±5min
- Secondary winding resistance measurement: Range: 0～300Ω; Accuracy: 2%±2mΩ
- AC load measurement: Range: 0～300VA; Accuracy: 2%±0.2VA
- Input supply voltage: AC220V±10%, 50Hz
- Work Environment: Temperature:－10℃ ～ 50℃; Humidity≤90%
- Dimension: 340×300×150mm3
- Weight: ≤9Kg
