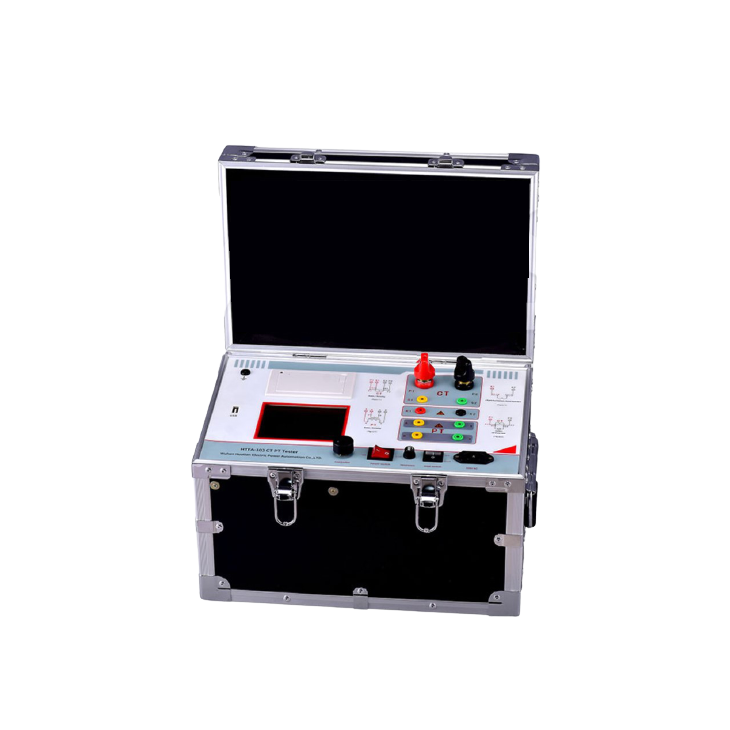

Wuhan HTFA-109A CT PT Tester (≤50000A/5A, ≤500kV)

Power supply: AC220V±10%, 50Hz

Equipment output: 0~2500Vrms, 5Arms (20A Peak) Note: 0~5A is true value larger than 5A~20A is the value of calculation

High current output: 0~1000A

Excitation precision: ≤0.5% (0.2%* reading +0.3%* range)

Secondary winding resistance measurement

- range: 0.1~300Ω

- precision: ≤0.5% (0.2%* reading +0.3%* range)

Secondary actual load measurement

- range: 5~1000VA

- precision: ≤0.5% (0.2%* reading +0.3%* range) ± 0.1va

Phase measurement (Angle difference)

- precision: ±4min

- resolution of the: 0.1min

Contrast: precision: 0.05%

Phase measurement (Angle difference): precision: ±4min

resolution of the: 0.1min

CT ratio measurement: range: ≤50000A/5A (10000A/1A)

precision: ≤0.5%

PT ratio measurement: range: ≤500kV

precision: ≤0.5%

Work environment: temperature: -10℃~40℃

humidity: ≤90%

altitude: ≤1000m

Size: 410mm×260mm×340mm

Weight of the: ≤22kg
