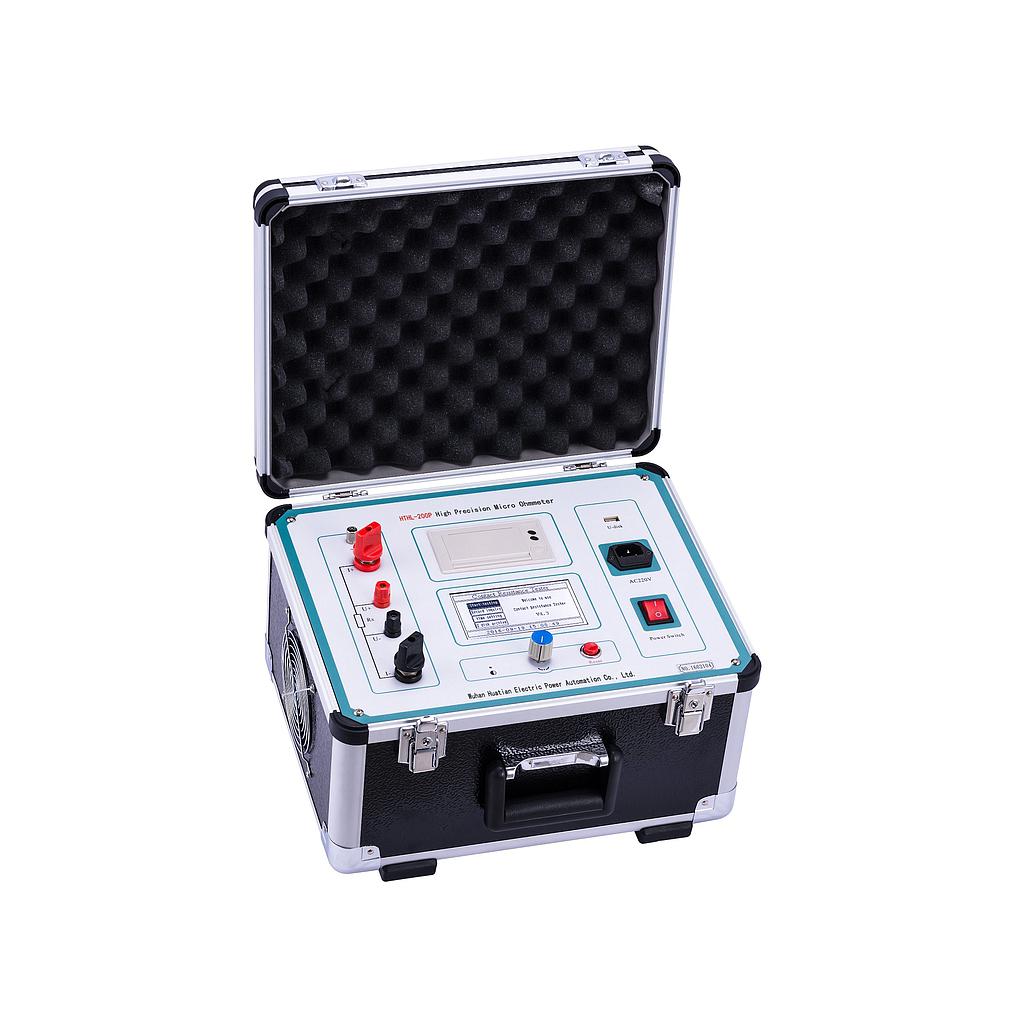

Wuhan HTHL-100P Low Resistance Ohmmeter (0～2999.9μΩ)

- Measurement range: 0～2999.9μΩ
- Resolution: 0～99.99, 0.01μΩ; 100.0～2999.9, 0.1μΩ
- Measured current: DC 50A, 100Afixed output
- Accuracy: ±(0.5% rd+2d)
- Continuous working time: 5s～599s
- Display: LCD
- Communication mode: USB
- Power supply: AC220V±10% 50Hz
- Power of the whole machine: 600W
- Maximum storage record: 200
- Service conditions: Temperature -10℃～40℃, humidity:≤80%RH
- Dimension: 360×300×250 mm
- Weight: 8Kg(not including accessory)
Accessories
- Host
- High Current Test Clamp
- Accessory Bag
- Power Cord
- Ground wire
- Fuse
- Manual, Report, Certificate

Datasheet
